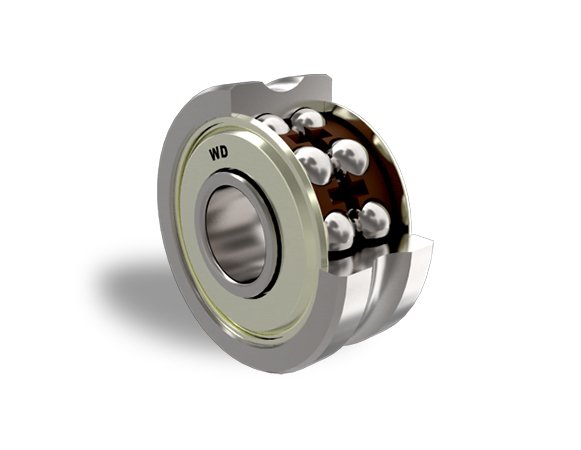

LFR Series Track Roller Bearings

Name: LFR Series Track Roller Bearings
Brand: WD Bearings
SKU: TRA-2135f3
Price: 49.99 USD
Availability: OutOfStock

SKU:TRA-2135f3

N/A

$49.99

Sale

Quantity

Expect your order to arrive on time.

All orders are processed through a secure, PCI-compliant checkout.

View full details

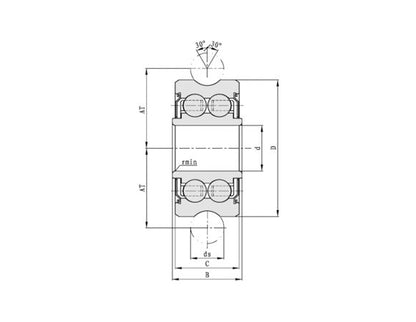

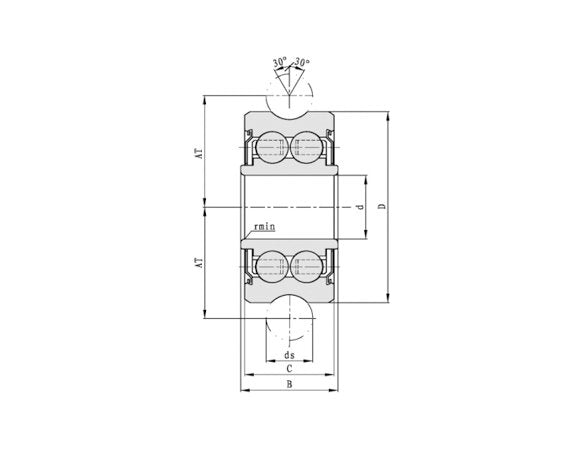

Product Specifications

Basic Size Bore Diameter

40 mm

Basic Size Dimension At

62.5 mm

Basic Size Dimension C

36 mm

Basic Size Dimension D2

48.4 mm

Basic Size Dimension Ds

40 mm

Basic Size Minimum Dimension R

1.1 mm

Basic Size Outside Diameter

98 mm

Basic Size Overall Bearing Width

38 mm

Load Rating Dynamic Cr Load Rating

38500 kN

Load Rating Static Cor Load Rating

29000 kN
