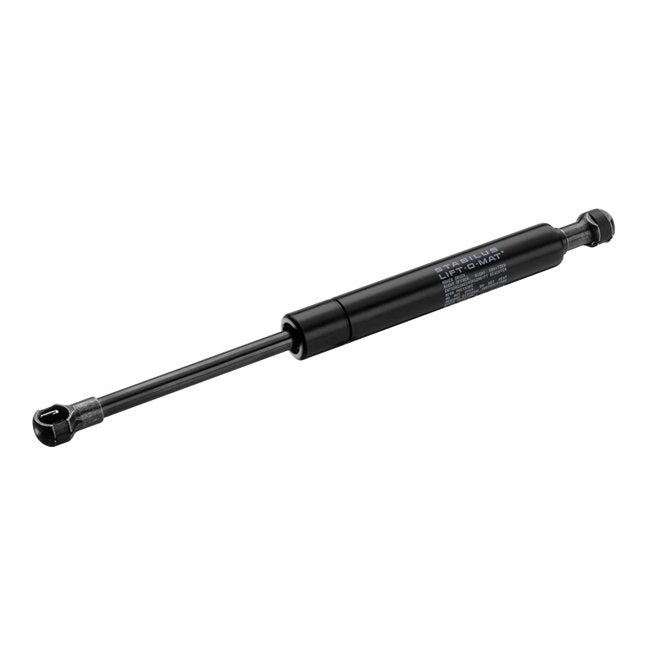

Lift-O-Mat Non-Locking Gas Springs
Lift-O-Mat Non-Locking Gas Springs
SKU:GAS-2dae0a
Optimize lift, lower, and support applications with Lift-O-Mat Non-Locking Gas Springs. Durable, versatile, and cost-effective solution.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Lift-O-Mat Non-Locking Gas Springs
$69.99
Quantity: 1
Claim Your Seller Account
Lift-O-Mat Non-Locking Gas Springs
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your applications with the Lift-O-Mat Non-Locking Gas Springs, designed to offer controlled motion for lifting, lowering, supporting, and adjusting. With a durable construction of low carbon or stainless steel, these gas springs provide forces ranging from 50 to 1150 Newtons, making them suitable for doors, lids, hatches, and various furniture applications. Featuring an extended length of up to 34.84 inches, compressed length of 7.68 inches, and a versatile metal ball and socket end fitting, these gas springs are perfect for medical, transportation, and machine construction industries.
Product Specifications
Specifications Alternate Pn
FAN22J
Specifications Compressed Length Mm
409
Specifications Compressed Length Mm Range
401-450
Specifications End Fitting
Metal Ball and Socket
Specifications Extended Length Mm
669
Specifications Extended Length Mm Range
651-700
Specifications Notes
Lift-O-Mat gas springs are ideal in applications that require lifting, lowering, moving, supporting, and adjusting. The combination of weight compensation and force support offer the perfect solution for lids, hatches, and doors. | We provide design assistance using our simulation program to help you design the right gas spring for your application. We can offer guidance in all areas, from improvements of existing products to completely new product development. Mounting points and h
Specifications Output Force Newtons
460
Specifications Output Force Newtons Range
451-500
Specifications Product Guides
Gas Spring's Guides
Specifications Rod Diameter Mm
10
Specifications Rod Finish
NiSlide
Specifications Travelstroke Mm
260
Specifications Travelstroke Range
251-275
Specifications Tube Diameter Mm
22
Specifications Tube Finish
Black Powder Coat
