Light Duty Line Vac 3/4 Inch Inlet Conveyor
Light Duty Line Vac 3/4 Inch Inlet Conveyor
SKU:LIG-8effa5
Efficiently convey materials with the Light Duty Line Vac 3/4 Inch Inlet Conveyor. Compact, quiet, and aluminum-built for diverse applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Light Duty Line Vac 3/4 Inch Inlet Conveyor
$129.99
Quantity: 1
Claim Your Seller Account
Light Duty Line Vac 3/4 Inch Inlet Conveyor
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

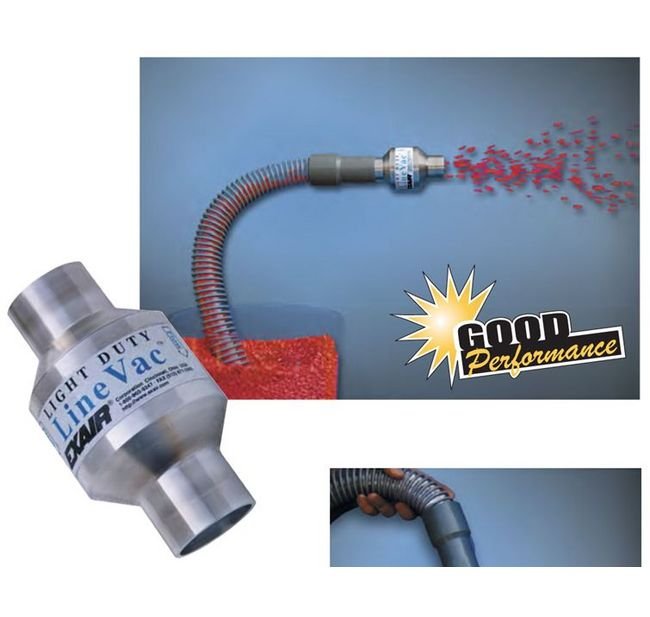

The Light Duty Line Vac 3/4 Inch Inlet Conveyor by EXAIR is designed to efficiently convey small volumes of materials over short distances. With a manageable 80 psig pressure and an aluminum build, it seamlessly converts a standard hose or tube into a conveyor for various materials. This compact conveyor requires low air consumption, offers moderate throughput capability, and operates quietly without any moving parts. Ideal for chip removal, filling operations, and waste/trim removal, this conveyor is a versatile solution for your material conveying needs.
Product Specifications
Specifications Advantages

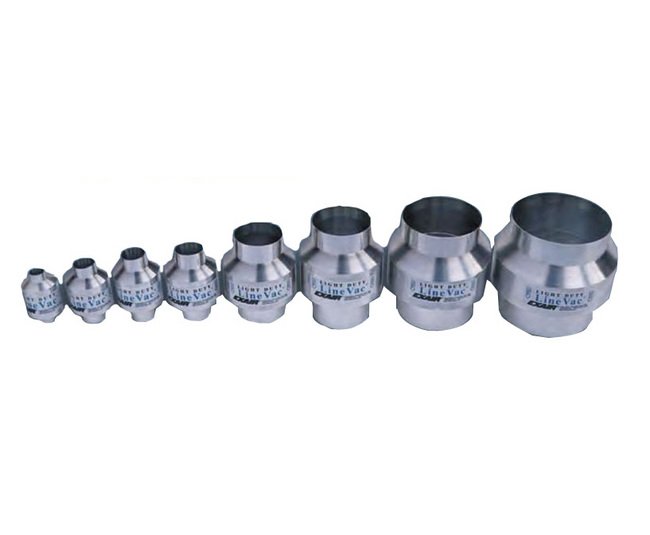

Aluminum | Compact | Eight Sizes | Fits Standard Hose or Tube | Moderate Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
7.30 SCFM | 207 SLPM
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Dimension E
2.31 in | 59 mm
Specifications Dimension F
1.06 in | 27 mm
Specifications Dimension G
1/4 NPT
Specifications Inlet Size
3/4 in | 19 mm
Specifications Inside Diameter
0.50 in | 13 mm
Specifications Outlet Diameter
3/4 in | 19 mm
Specifications Outside Diameter
1.88 in | 48 mm
Specifications Overall Length
4.53 in | 115 mm
Specifications Pressure
80 psig | 5.5 bar
