Limitag V5 Lite Omnidirectional Printing Systems - High Resolution Barcode Printer
Limitag V5 Lite Omnidirectional Printing Systems - High Resolution Barcode Printer
SKU:LIM-4edaa1
Enhance efficiency with the Limitag V5 Lite Omnidirectional Printing Systems - High resolution, GS-1 compliant barcodes
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Limitag V5 Lite Omnidirectional Printing Systems - High Resolution Barcode Printer
$2,899.99
Quantity: 1
Claim Your Seller Account
Limitag V5 Lite Omnidirectional Printing Systems - High Resolution Barcode Printer
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

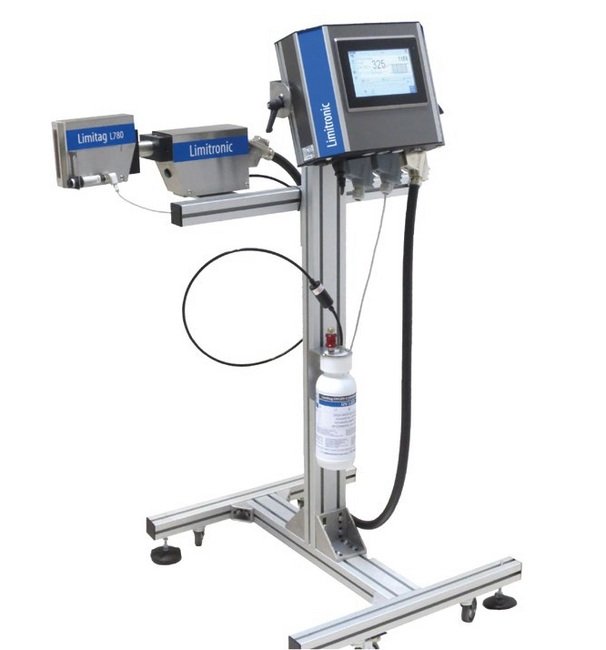

The Limitag V5 Lite Omnidirectional Printing Systems is a versatile solution designed for high-quality barcode printing at 180dpi resolution. With multiple densities and contrasts, this printer meets GS-1 standards, ensuring accurate and efficient barcode generation. Its intuitive user interface and modular design make it ideal for personalized fields, expiration dates, and shift codes, catering to both consumer and institutional requirements.
Product Specifications
Advantages Advantages
Personalization. Short runs. PromotionsStock reduction of pre-printed boxesPractically zero maintenanceNo interruptions when adding consumablesPrint on inclined conveyor belts
Characteristics Characteristics
On screen preview of printing layout (WYSIWYG)Oil based and UV LED inkIntegrated WebServerExternal message selection through hardwarePost-print barcode scanner integrationScripting for total job personalization
Communications Communications
Individual communications protocolWebserverWindows⢠DriverConnectivity with external database and ERPRemote assistanceDatamax (DPL), Zebra (ZPL2) protocol emulation option
De Impresion Print Bar Codes
GS1 Datamatrix | GS1 QR Code | GS-1 standard EAN/UPC | GS1-128 | ITF-14
De Impresion Print Character Coding
Unicode
De Impresion Print Densities
3 Levels
De Impresion Print Font Type
Open Type⢠| TrueTypeâ¢
De Impresion Print Height
72 mm
De Impresion Print Maximum Length
1100 mm
De Impresion Print Orientation
Vertical (side of product)Horizontal (cover of product)Inclined printing (any angle)
De Impresion Print Printing In Variable Fields
User (personalized fields) and automatic based fields (expiration dates, shift codes, counters)
De Impresion Print Print Head Resolution
180 dpi
De Impresion Print Print Speed According To The Resolution
0.2 to 96 m/min
De Impresion Print Print Speed At 180 Dots Per Inch Dpi
30 m/min
Electrical Alternating Current Ac Voltage Auto Range
88 to 264 V
Electrical Communication Ports
1 x RS-2321 x Ethernet 10/1001 x USB1 x Wi-Fi (Optional)
Electrical Frequency Auto Range
47 to 63 Hz
Electrical Inputs
2 x printer signals1 x encoder5 x programmable electronics (external message selection)
Electrical Maximum Power Auto Range
108 W
Electrical Outputs
2 x programmable electronics2 x status indicators
Environment Environmental Working Temperature
5 to 45 ºC | 41 to 113 ºF
Environment Ingress Protection Ip Controller
Ingress Protection (IP50)
Features Features
Printing immediately sets Useful, long life span with low maintenance Energy efficientSeveral heights availableInstant on/offSafety through double activation inputAdjustable intensity
Options Options
Alarm Beacon | Barcode Scanner for Product Selection | Encoder | Post-Printing Barcode Verification
Other Color
Black | Black (High Contrast) Cyan | Magenta | Others (Consult) | Yellow
Other Inks
Oil based inkUV LED ink
Other Weight
6 kg
Printable Products Printable Products
Art Paper | Cardboard | EPS | EPS and More | Fabrics | Glossy Paper | Metal | Nylon | Paper | Plastic | Wood
User Interface User Interface
Touch screen, color, 7ââ Message selection with preview WYSIWYGDiagnostics
