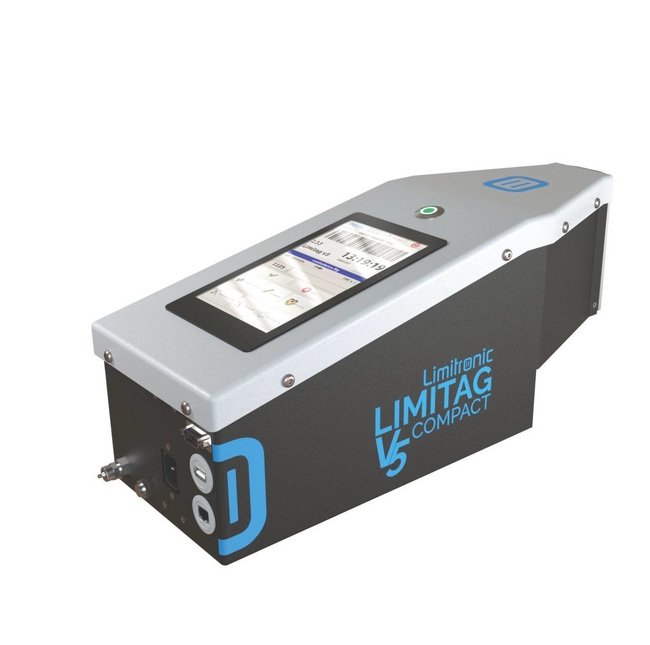

Limitag V5 Monoblock Printing System
Limitag V5 Monoblock Printing System
SKU:LIM-28fc27
High-quality barcode printing system with 180 dpi resolution, variable field printing, and user-friendly interface for efficient and reliable outputs.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Limitag V5 Monoblock Printing System
$4,999.99
Quantity: 1
Claim Your Seller Account
Limitag V5 Monoblock Printing System
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Limitag V5 Monoblock Printing System offers high-quality barcode printing meeting GS-1 standards, with a native 180 dpi resolution for precise outputs. It features variable field printing, compatibility with multiple substrates, and an efficient user interface. Ideal for personalization, short runs, and stock reduction, this system requires minimal maintenance and offers uninterrupted operation during consumable replenishment. With compatibility across various industries, it ensures efficient and reliable printing solutions for both consumer and institutional needs.
Product Specifications
Advantages Advantages
Personalization. Short runs. PromotionsStock reduction of pre-printed boxesPractically zero maintenanceNo interruptions when adding consumables
Communications Communications
Individual communications protocolWindows⢠DriverRemote assistance
Electrical Alternating Current Ac Voltage Auto Range
88 to 264 V
Electrical Communication Ports
1 x Ethernet 10/100 | 1 x RS-232 | 1 x USB | 1 x WiFi
Electrical Frequency Auto Range
47 to 63 Hz
Electrical Inputs
2 x printer signals1 x encoder5 x programmable electronics (external message selection)
Electrical Maximum Power Auto Range
108 W
Electrical Outputs
2 x programmable electronics
Environment Environmental Working Temperature
5 to 40 ºC | 41 to 104 ºF
Environment Ingress Protection Ip Controller
Ingress Protection (IP50)
Features Features
Printing immediately sets Useful, long life span with low maintenance Energy efficientSeveral heights availableInstant on/offSafety through double activation inputAdjustable intensityIntuitive user environmentOn screen preview of printing layout (WYSIWYG)Oil based and UV LED inkIntegrated Wi-FiExternal message selection through hardware
Options Options
Alarm Beacon | Encoder | Purge Assist
Other Color
Black | Black (High Contrast) | Cyan | Magenta | Others (Consult) | Yellow
Other Inks
Oil based inkUV LED ink
Other Weight
4.5 kg
Printable Products Printable Products
Art Paper | Cardboard | EPS and More | Fabrics | Glossy Paper | Metal | Nylon | Paper | Plastic | Wood
Print Bar Codes
GS1 Datamatrix | GS1 QR Code | GS-1 standard EAN/UPC | GS1-128 | ITF-14
Print Character Coding
Unicode
Print Densities
3 Levels
Print Font Type
Open Type⢠| TrueTypeâ¢
Print Height
72 mm
Print Maximum Length
1100 mm
Print Orientation
Vertical (Side of the Product)
Print Printing Of Variable Fields
User (personalized fields) and automatic based fields (expiration dates, shift codes, counters)
Print Print Head Resolution
180 dpi
Print Print Speed According To The Resolution
0.2 to 96 m/min
Print Print Speed At 180 Dots Per Inch Dpi
30 m/min
User Interface User Interface
Touch screen, color, 7"Message selection with previewWYSIWYGDiagnostics
