Limitag V5 STD Multi-Head Printing System
Limitag V5 STD Multi-Head Printing System
SKU:LIM-186a15
Enhance your printing capabilities with Limitag V5 STD Multi-Head Printing System - precision, efficiency, and modularity in one!
Regular price
$11,899.99
Regular price
Sale price
$11,899.99
Unit price
per
Initiate Order
Limitag V5 STD Multi-Head Printing System
$11,899.99
Quantity: 1
Claim Your Seller Account
Limitag V5 STD Multi-Head Printing System
$11,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

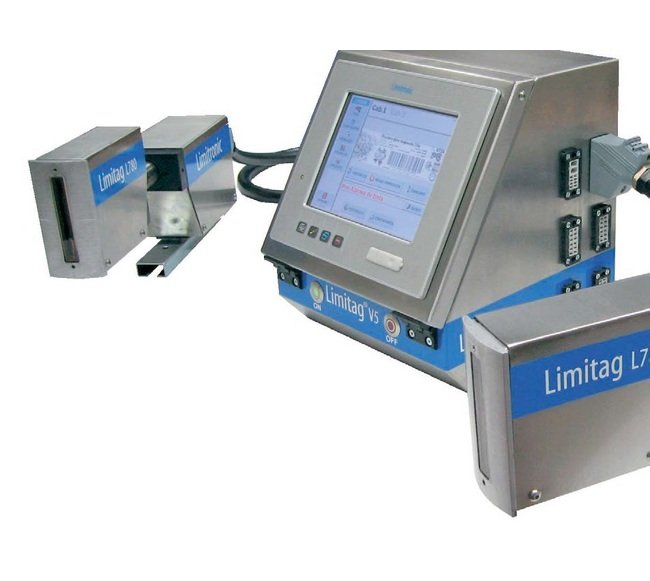

The Limitag V5 STD Multi-Head Printing System offers high-quality printing with resolutions of 180 dpi, customizable print heights up to 280mm, and compatibility with various substrates. With intuitive user interfaces, integrated message editors, and multiple barcode standards like GS1, this system ensures efficient and precise printing for both consumer and institutional needs. Enjoy features like variable data printing, modularity for expanded printing areas, and connectivity options for seamless integration into existing workflows.
Product Specifications
Advantages Advantages
Personalization. Short runs. PromotionsStock reduction of pre-printed boxesPractically zero maintenanceNo interruptions when adding consumablesInclined printing from any angle
Characteristics Characteristics
On screen preview of printing layout (WYSIWYG)Oil based and UV LED inkIntegrated WebServerExternal message selection through hardwareIntegrated post-print barcode scannerScripting for total work personalizationManage up to 4 heads per controller
Communications Communications
Individual communications protocolWebserverWindows⢠DriverConnectivity with external database and ERPRemote assistanceDatamax (DPL), Zebra (ZPL2) protocol emulation option
Electrical Alternating Current Ac Voltage
88 to 132 V | 176 to 264 V
Electrical Communication Ports
1 x RS-2321 x RS-422/485/232 (optional)2 x Ethernet 10/1002 x USB1 x WiFi (Optional)
Electrical Frequency
47 to 63 Hz
Electrical Inputs Through Head
2 x printer signals1 x encoder5 x programmable electronics (external message selection)
Electrical Maximum Power
156 W
Electrical Outputs Through Head
2 x programmable electronics2 x status indicators
Environment Environmental Working Temperature
5 to 45 ºC | 41 to 113 ºF
Environment Ingress Protection Ip Controller
Ingress Protection (IP65)
Features Features
Printing immediately sets Useful, long life span with low maintenance Energy efficientSeveral heights availableInstant on/offSafety through double activation inputAdjustable intensity
Options Options
Alarm Beacon | Barcode Scanner for Product Selection | Encoder | Post-Printing Barcode Verification
Other Color
BlackBlack (high contrast) CyanMagentaYellowOthers (consult)
Other Inks
Oil based inkUV LED ink
Other Weight Controller
8 kg
Other Weight L780 Head
4 kg
Printable Products Printable Products
Art Paper | Cardboard | EPS and More | Fabrics | Glossy Paper | Metal | Nylon | Paper | Plastic | Wood
Print Bar Codes
GS1 Datamatrix | GS1 QR Code | GS-1 standard EAN/UPC | GS1-128 | ITF-14
Print Character Coding
Unicode
Print Densities
3 Levels
Print Font Type
Open Type⢠| TrueTypeâ¢
Print Height 1 Head
72 mm
Print Height 2 Heads
140 mm
Print Height 3 Heads
210 mm
Print Height 4 Heads
280 mm
Print Maximum Length
1100 mm
Print Orientation
Vertical (side of product)Horizontal (cover of product)Inclined printing(any angle)
Print Printing In Variable Fields
User (personalized fields) and automatic fields (expiration dates, shift codes, counters)
Print Print Head Resolution
180 dpi
Print Print Speed According To The Resolution
0.2 to 96 m/min
Print Print Speed At 180 Dots Per Inch Dpi
30 m/min
Technical Specs Modularity
Up to 4 independent or combined heads to increase the vertical printing area
User Interface User Interface
8" color touch screenMessage selection with previewWYSIWYGDiagnosticsIntegrated message editor
