Limitag V7 White 300 dpi Inkjet Printer System
Limitag V7 White 300 dpi Inkjet Printer System
SKU:LIM-7b5b23
High contrast printing on dark substrates, 300 dpi resolution, flexible and low maintenance, ideal for variable data printing.
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
Limitag V7 White 300 dpi Inkjet Printer System
$12,999.99
Quantity: 1
Claim Your Seller Account
Limitag V7 White 300 dpi Inkjet Printer System
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

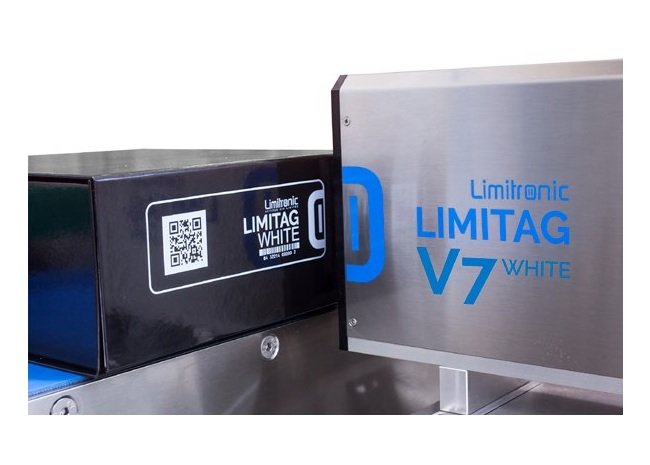

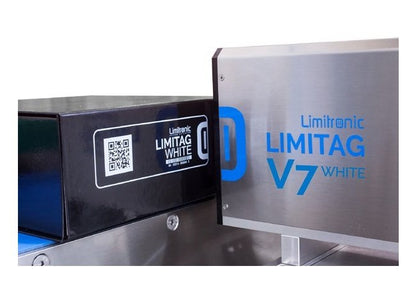

The Limitag V7 White High Resolution Inkjet Printing System is designed for dark substrates with high contrast, offering single pass efficiency and minimal maintenance needs. With a 300 dpi print head resolution, up to 30 m/min printing speed, and versatile print capabilities including barcodes and variable fields, this system ensures precise and customizable printing. Its integrated Graphic Editor, UV LED inks, and instant drying feature provide flexibility for short runs, promotions, and varied substrates. The user-friendly interface with layout preview and remote assistance option enhances operational efficiency while maintaining industry standards compliance.
Product Specifications
Advantages Advantages
Solvent-free inksFlexibility on short runs and promotionsAlmost zero maintenanceNo need to stop for consumables replacementInstant drying
Characteristics Characteristics
Vertical native resolution 300 dpiHigh quality barcodes. GS1 StandardsIntuitive user interfaceOn-screen layout preview (WYSIWYG)UV LED inksPossible remote assistancePossible barcode readability integration
Communications Communications
Proprietary communication protocolDriver Windowsâ¢External database and ERP connectivityRemote assistance tool
Electrical Alarm Outputs
Configurable
Electrical Alternating Current Ac Voltage
230 V
Electrical Communication Ports
RS-232RS-422/485/232 (optional)EthernetUSBWiFi (optional)
Electrical Inputs
1 x print trigger1 x encoder
Environment Console Ingress Protection Ip
Ingress Protection (IP54)
Environment Environmental Working Temperature
5 to 45 ºC | 41 to 113 ºF
Features Features
Immediate fixing of the printing Low maintenance and long service life Efficient power consumptionDifferent available heightsInstant switch on-switch offSafety by double activation input (interlock)Adjustable intensity
Options Options
Alarm Beacon Lights | Barcode Scanning for Product ID | Barcode Verification After Printing | External Message Selection Via Hardware
Other Consumables
Ultraviolet (UV) Light Emitting Diode (LED) Inks
Possible Substrates Possible Substrates
Coated Boards | EPS | Foam | Glossy Boards | Metal | Paper | Plastic | Porous Board | Textile | Wood
Print Bar Codes
GS1 Datamatrix | GS1 QR Code | GS1-128 | ITF-14 | Standard GS-1 EAN/UPC
Print Character Codification
Unicode
Print Encoder Optional
Automatic speed calibration
Print Font Type
Open Type⢠| TrueTypeâ¢
Print Intensity
5 Levels
Print Orientation Depending On Model Type
Vertical (product - lateral side)Horizontal (product lid - on top)
Print Printhead Height
53 mm
Print Printing In Variable Fields
User variables (customized fields)Automatic fields (Best before dates, shift, counters)
Print Print Head Resolution
300 dpi
Print Speed
Up to 30 m/min
User Interface User Interface
Full color touchscreen, 15"Layout preview (WYSIWYG)DiagnosisIntegrated Graphic editor
