Linear Position Sensor 27mm OD, 6in Stroke, 4-20mA Output
Linear Position Sensor 27mm OD, 6in Stroke, 4-20mA Output
SKU:LIN-f70534
Enhance linear position sensing with precision and durability. 27mm OD, 6in Stroke, 4-20mA output. CE approved.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Linear Position Sensor 27mm OD, 6in Stroke, 4-20mA Output
$79.99
Quantity: 1
Claim Your Seller Account
Linear Position Sensor 27mm OD, 6in Stroke, 4-20mA Output
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

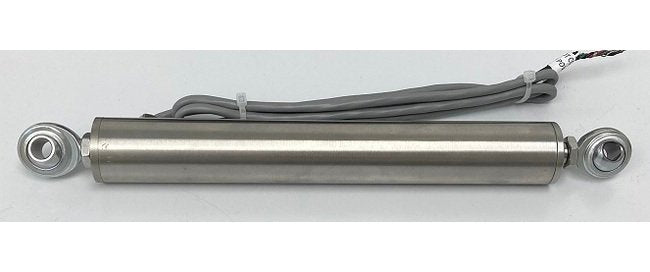

Upgrade your linear position sensing with the Alliance Sensors Group 27mm OD replacement sensor. With a stainless steel body and radial cable type, this sensor ensures durability and precision in measuring linear displacement. Featuring a linearity of <0.25% of full scale and an output current range of 4 to 20mA, this sensor is suitable for a wide temperature range from -20 to 85 ºC. Approved for European Conformity (CE), this sensor guarantees compliance with international standards while providing accurate and reliable data for your applications.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Length
1 m
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Current
4 to 20 mA
Technical Specs Outside Diameter
27 mm
Technical Specs Range
6 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
6 in
Technical Specs Temperature Range
-20 to 85 ºC
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
