Linear Potentiometer Replacement Sensor - 27mm OD, 1" Stroke, 0-10V DC Output

Name: Linear Potentiometer Replacement Sensor - 27mm OD, 1" Stroke, 0-10V DC Output
Brand: Alliance Sensors Group
SKU: LIN-95583b
Price: 69.99 USD
Availability: OutOfStock

SKU:LIN-95583b

Accurate linear potentiometer replacement sensor with 1" stroke length, 0-10V DC output, CE approved, and durable stainless steel construction.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

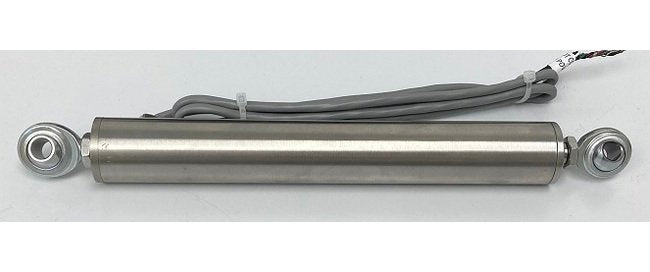

The Linear Potentiometer Replacement Sensor by Alliance Sensors Group offers precise measurement with a 1-inch stroke length and a 0 to 10V DC output voltage range. Built for durability, it features a stainless steel body and radial cable type. With CE approval and a temperature range of -40 to 105 ºC, this sensor ensures accurate and reliable performance in a variety of applications, meeting stringent industry standards.

Product Specifications

Technical Specs Brands

Alliance Sensors Group

Technical Specs Cable Length

1 m

Technical Specs Cable Type

Radial

Technical Specs European Conformity Ce Approved

Yes

Technical Specs Linearity

<0.25 % of Full Scale

Technical Specs Material

Stainless Steel Body

Technical Specs Output Direct Current Dc Voltage

0 to 10 V

Technical Specs Outside Diameter

27 mm

Technical Specs Range

1 in

Technical Specs Resolution

0.025 % of Full Scale

Technical Specs Stroke

1 in

Technical Specs Temperature Range

-40 to 105 ºC

Technical Specs Type

Rod Ends

Technical Specs Update Rate

300 Hz
