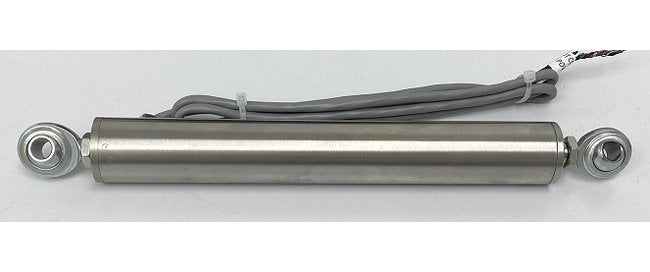

Linear Potentiometer Replacement Sensor - 27mm OD, 12" Stroke, 4-20mA
Linear Potentiometer Replacement Sensor - 27mm OD, 12" Stroke, 4-20mA
SKU:LIN-8a84e9
Upgrade your linear position sensing with precision! The 27mm OD, 12" Stroke Sensor ensures durability, accuracy, and compliance for industrial and institutional applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Linear Potentiometer Replacement Sensor - 27mm OD, 12" Stroke, 4-20mA
$149.99
Quantity: 1
Claim Your Seller Account
Linear Potentiometer Replacement Sensor - 27mm OD, 12" Stroke, 4-20mA
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your linear position sensing with the 27mm OD, 12" Stroke Linear Potentiometer Replacement Sensor. Manufactured by Alliance Sensors Group, this sensor ensures precise measurements with a temperature range of -20 to 85 ºC and a linearity of <0.25% of Full Scale. The stainless steel body and CE approval guarantee durability and compliance, making it ideal for industrial and institutional applications. Enhance your systems with reliable performance and accurate data output.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Length
1 m
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Current
4 to 20 mA
Technical Specs Outside Diameter
27 mm
Technical Specs Range
12 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
12 in
Technical Specs Temperature Range
-20 to 85 ºC
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
