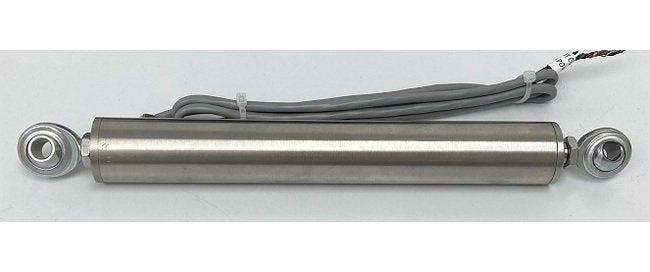

Linear Potentiometer Replacement Sensor - 27mm OD, 3in Stroke, 0-10V DC Output
Linear Potentiometer Replacement Sensor - 27mm OD, 3in Stroke, 0-10V DC Output
SKU:LIN-47d90b
High-precision 27mm OD linear potentiometer replacement sensor for accurate 3in stroke measurements with 0-10V DC output. Durable stainless steel body.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Linear Potentiometer Replacement Sensor - 27mm OD, 3in Stroke, 0-10V DC Output
$89.99
Quantity: 1
Claim Your Seller Account
Linear Potentiometer Replacement Sensor - 27mm OD, 3in Stroke, 0-10V DC Output
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Alliance Sensors Group 27mm OD linear potentiometer replacement sensor offers precise measurements with a 3in stroke length and 0-10V DC output. Crafted with a stainless steel body, it ensures durability and reliability. With a temperature range of -40 to 105°C, <0.25% linearity, and 0.025% resolution, this sensor delivers high accuracy suitable for industrial applications. CE-approved and featuring a 1m radial cable, it meets stringent quality standards for both consumer and institutional needs.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Length
1 m
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
27 mm
Technical Specs Range
3 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
3 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
