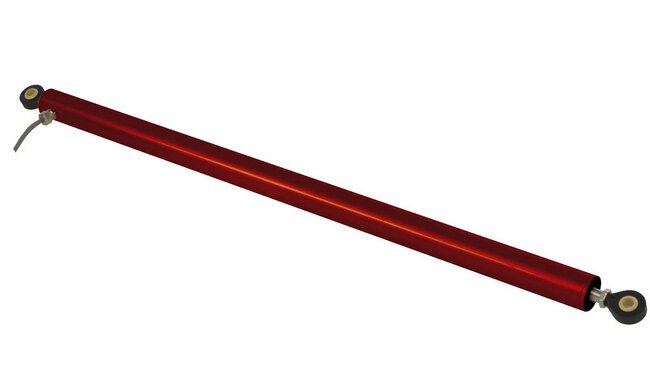

Linear Potentiometer Sensor - 27mm OD, 12" Stroke, 4-20mA Output
Linear Potentiometer Sensor - 27mm OD, 12" Stroke, 4-20mA Output
SKU:LIN-ef1f8a
Enhance accuracy with this Linear Potentiometer Sensor - 27mm OD, 12" Stroke, 4-20mA Output. CE approved, precise, and durable.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Linear Potentiometer Sensor - 27mm OD, 12" Stroke, 4-20mA Output
$89.99
Quantity: 1
Claim Your Seller Account
Linear Potentiometer Sensor - 27mm OD, 12" Stroke, 4-20mA Output
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your linear position sensing with the Alliance Sensors Group Linear Potentiometer Replacement Sensor. This high-precision sensor features a 27mm Outside Diameter, 12-inch Stroke, and 4 to 20 mA Output Current. With a durable Aluminum Body, European Conformity (CE) approval, and impeccable Linearity of <0.25% of Full Scale, it ensures reliable performance in temperatures ranging from -20 to 85 ºC. Benefit from its superior resolution of 0.025% of Full Scale, 300 Hz Update Rate, and easy-to-terminate 1m Radial Cable. Trust this sensor for accurate and efficient rod end measurement applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Aluminum Body
Technical Specs Output Current
4 to 20 mA
Technical Specs Outside Diameter
27 mm
Technical Specs Range
12 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
12 in
Technical Specs Temperature Range
-20 to 85 ºC
Technical Specs Termination
1 m Cable
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
