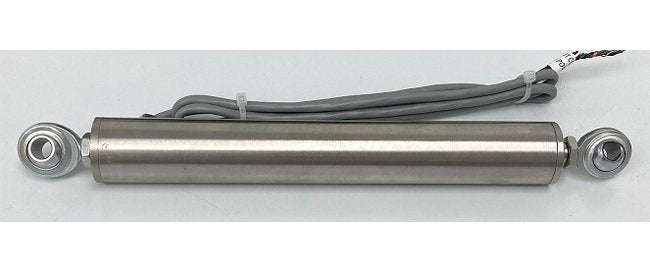

Linear Potentiometer Sensor - 27mm OD, 16in Stroke, 4-20mA Output
Linear Potentiometer Sensor - 27mm OD, 16in Stroke, 4-20mA Output
SKU:LIN-66d3c3
Enhance precision and reliability with our linear potentiometer sensor - 27mm OD, 16in stroke, 4-20mA output.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Linear Potentiometer Sensor - 27mm OD, 16in Stroke, 4-20mA Output
$89.99
Quantity: 1
Claim Your Seller Account
Linear Potentiometer Sensor - 27mm OD, 16in Stroke, 4-20mA Output
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your linear potentiometer systems with the high-precision 27mm OD, 16in stroke sensor. Built with a stainless steel body, this Alliance Sensors Group product offers exceptional linearity (<0.25%) and a precise resolution of 0.025% of full scale. With European Conformity (CE) approval, this sensor operates flawlessly in temperatures ranging from -20 to 85 ºC. Experience reliable performance with a rapid 300 Hz update rate, radial cable type, and rod ends design.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Length
1 m
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Current
4 to 20 mA
Technical Specs Outside Diameter
27 mm
Technical Specs Range
16 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
16 in
Technical Specs Temperature Range
-20 to 85 ºC
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
