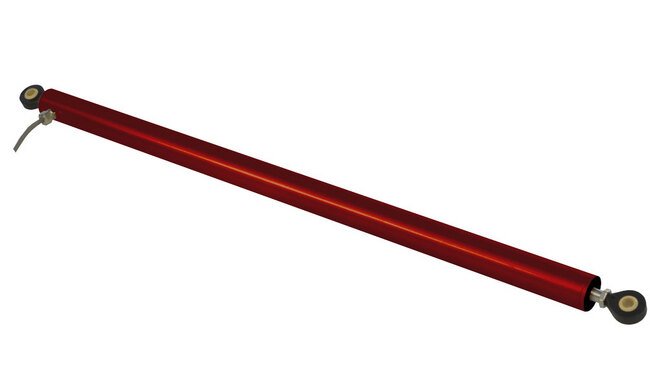

Linear Potentiometer Sensor, 27mm OD, 18in Stroke, 4-20mA Output
Linear Potentiometer Sensor, 27mm OD, 18in Stroke, 4-20mA Output
SKU:LIN-8b8769
Upgrade your linear potentiometer with precision. 27mm OD, 18in Stroke, 4-20mA output for reliability & accuracy. CE approved.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Linear Potentiometer Sensor, 27mm OD, 18in Stroke, 4-20mA Output
$89.99
Quantity: 1
Claim Your Seller Account
Linear Potentiometer Sensor, 27mm OD, 18in Stroke, 4-20mA Output
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your linear potentiometer with the 27mm OD, 18in Stroke Sensor designed by Alliance Sensors Group. Offering precise measurement with a 4-20mA output current, this sensor ensures high linearity (<0.25%) and temperature range of -20 to 85°C. The aluminum body and CE approval guarantee durability and compliance. Ideal for industrial applications requiring reliable and accurate position sensing.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Aluminum Body
Technical Specs Output Current
4 to 20 mA
Technical Specs Outside Diameter
27 mm
Technical Specs Range
18 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
18 in
Technical Specs Temperature Range
-20 to 85 ºC
Technical Specs Termination
1 m Cable
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
