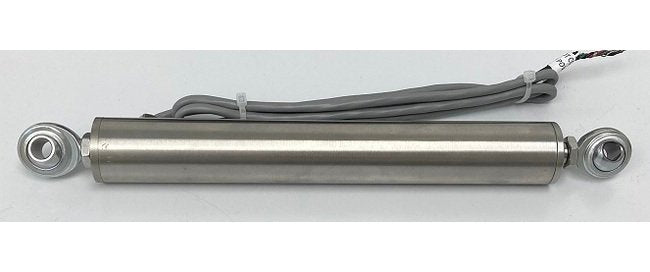

Linear Potentiometer Sensor, 27mm OD, 2" Stroke, 4-20mA Output
Linear Potentiometer Sensor, 27mm OD, 2" Stroke, 4-20mA Output
SKU:LIN-834dbe
Enhance your system with this precision Linear Potentiometer Sensor, 27mm OD, 2" Stroke, 4-20mA Output, CE-approved for accuracy & durability.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Linear Potentiometer Sensor, 27mm OD, 2" Stroke, 4-20mA Output
$69.99
Quantity: 1
Claim Your Seller Account
Linear Potentiometer Sensor, 27mm OD, 2" Stroke, 4-20mA Output
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your linear potentiometer systems with this precision sensor from Alliance Sensors Group. With an outside diameter of 27mm, 2" stroke, and 4 to 20mA output current, this stainless steel sensor ensures reliable performance in temperatures ranging from -20 to 85 ºC. Featuring CE approval, <0.25% linearity, and 0.025% resolution, it offers superior accuracy. The radial cable type with 1m length simplifies installation, making it ideal for industrial applications requiring quality and compliance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Length
1 m
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Current
4 to 20 mA
Technical Specs Outside Diameter
27 mm
Technical Specs Range
2 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
2 in
Technical Specs Temperature Range
-20 to 85 ºC
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
