Linear Potentiometer Sensor, 27mm OD, 4" Stroke, 0-10V DC Output
Linear Potentiometer Sensor, 27mm OD, 4" Stroke, 0-10V DC Output
SKU:LIN-8947e7
Upgrade to Alliance Sensors Group 4" Stroke Replacement Sensor for accurate measurements and CE approval.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Linear Potentiometer Sensor, 27mm OD, 4" Stroke, 0-10V DC Output
$89.99
Quantity: 1
Claim Your Seller Account
Linear Potentiometer Sensor, 27mm OD, 4" Stroke, 0-10V DC Output
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

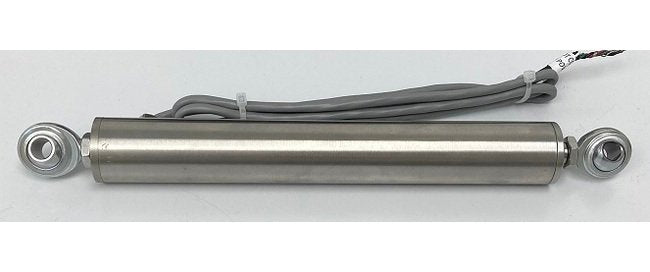

Upgrade your linear potentiometer system with the Alliance Sensors Group 4-inch Stroke Replacement Sensor. Built with a durable stainless steel body, it offers precise measurements with <0.25% linearity and 0.025% resolution. This sensor operates in a wide temperature range (-40 to 105 ºC) and is CE approved. Enhance your equipment's performance with this reliable, high-quality sensor.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Length
1 m
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
27 mm
Technical Specs Range
4 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
4 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
