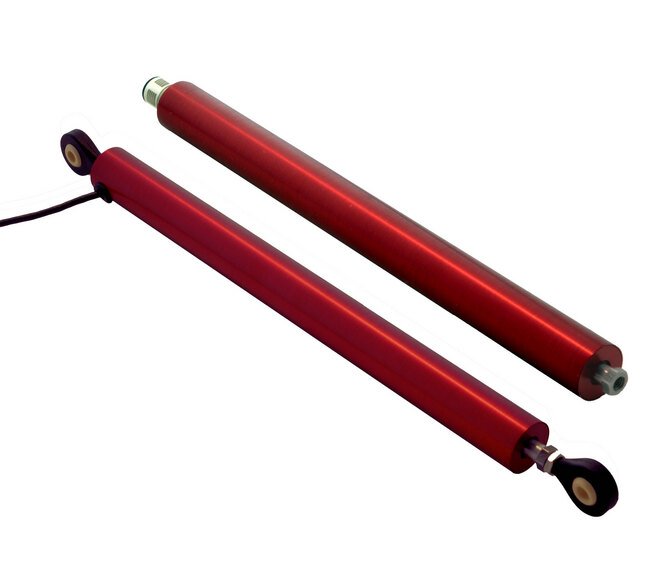

Linear Potentiometer Sensor, 3/4" OD, 8" Stroke, 0-10V DC Output
Linear Potentiometer Sensor, 3/4" OD, 8" Stroke, 0-10V DC Output
SKU:LIN-b5a77f
Highly precise Linear Potentiometer Sensor with 8" stroke, 0-10V DC output, ideal for industrial position sensing.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Linear Potentiometer Sensor, 3/4" OD, 8" Stroke, 0-10V DC Output
$129.99
Quantity: 1
Claim Your Seller Account
Linear Potentiometer Sensor, 3/4" OD, 8" Stroke, 0-10V DC Output
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Linear Potentiometer Sensor offers precise position sensing with a stroke of 8 inches, outputting a direct current voltage range of 0 to 10 volts. Engineered by Alliance Sensors Group, this sensor features an aluminum body, radial cable type, and rod ends design. With exceptional linearity (<0.25% of Full Scale) and high resolution (0.025% of Full Scale), it operates efficiently in temperatures ranging from -40 to 105 ºC. CE approved, this sensor ensures accurate and reliable performance in various industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Aluminum Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
3/4 in
Technical Specs Range
8 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
8 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
