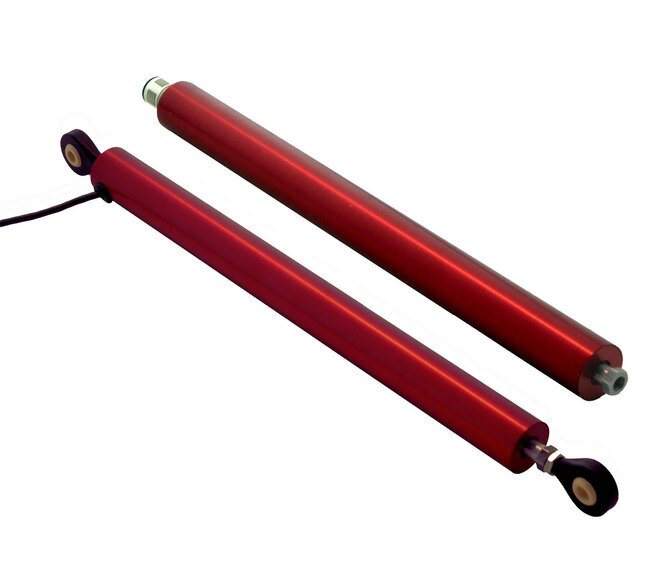

Linear Potentiometer Sensor, 3/4in OD, 4in Stroke, 4-20mA Current Output
Linear Potentiometer Sensor, 3/4in OD, 4in Stroke, 4-20mA Current Output
SKU:LIN-178acf
High-precision Linear Potentiometer Sensor with 3/4in OD, 4in Stroke, and 4-20mA Output.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Linear Potentiometer Sensor, 3/4in OD, 4in Stroke, 4-20mA Current Output
$89.99
Quantity: 1
Claim Your Seller Account
Linear Potentiometer Sensor, 3/4in OD, 4in Stroke, 4-20mA Current Output
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Linear Potentiometer Replacement Sensor by Alliance Sensors Group is a high-precision, durable sensor designed for industrial and institutional applications. With a 3/4-inch outside diameter and 4-inch stroke, this sensor provides accurate position feedback. It operates within a temperature range of -20 to 85 ºC, ensuring reliability in varying environments. The 4 to 20 mA output current offers compatibility with a wide range of systems, while its <0.25% linearity and 0.025% resolution guarantee precise measurements. CE approved and constructed with an aluminum body, this sensor excels in quality and performance, making it an ideal choice for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Aluminum Body
Technical Specs Output Current
4 to 20 mA
Technical Specs Outside Diameter
3/4 in
Technical Specs Range
4 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
4 in
Technical Specs Temperature Range
-20 to 85 ºC
Technical Specs Termination
1 m Cable
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
