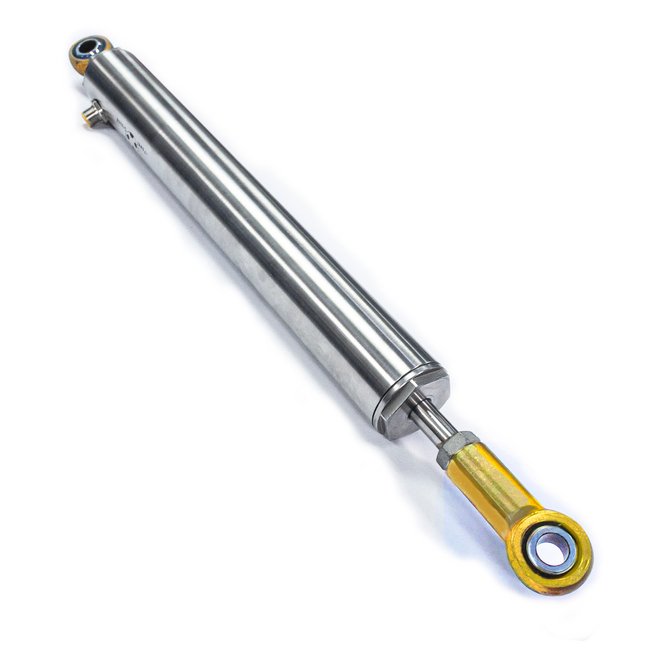

Linear Potentiometer Sensor, 45mm OD, 12in Stroke, 4-20mA Output

Name: Linear Potentiometer Sensor, 45mm OD, 12in Stroke, 4-20mA Output
Brand: Alliance Sensors Group
SKU: LIN-b3acf5
Price: 129.99 USD
Availability: OutOfStock

SKU:LIN-b3acf5

Enhance your linear potentiometer with precision: 45mm OD, 12in Stroke, 4-20mA Output, CE Approved

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your linear potentiometer with this high-performance replacement sensor from Alliance Sensors Group. Featuring a 12-inch stroke and 4 to 20 mA output current, this sensor ensures precise measurements with <0.25% linearity. Built with a stainless steel body, radial M12 connector, and CE approval, it guarantees durability and compliance. Ideal for industrial applications, this sensor operates in a wide temperature range from -40 to 105 ºC, offering accuracy and reliability in demanding environments.

Product Specifications

Technical Specs Brands

Alliance Sensors Group

Technical Specs Connector Type

Radial M12

Technical Specs European Conformity Ce Approved

Yes

Technical Specs Linearity

<0.25 % of Full Scale

Technical Specs Material

Stainless Steel Body

Technical Specs Output Current

4 to 20 mA

Technical Specs Outside Diameter

45 mm

Technical Specs Range

12 in

Technical Specs Resolution

0.025 % of Full Scale

Technical Specs Stroke

12 in

Technical Specs Temperature Range

-40 to 105 ºC

Technical Specs Type

Rod Ends

Technical Specs Update Rate

300 Hz

Linear Potentiometer Sensor, 45mm OD, 12in Stroke, 4-20mA Output
