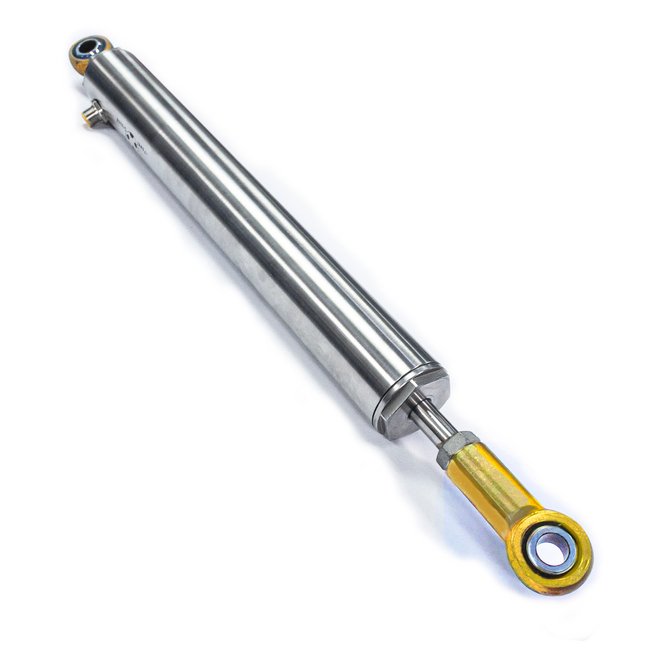

Linear Potentiometer Sensor - 45mm OD, 18in Stroke, 4-20mA Output

Name: Linear Potentiometer Sensor - 45mm OD, 18in Stroke, 4-20mA Output
Brand: Alliance Sensors Group
SKU: LIN-26ae5a
Price: 79.99 USD
Availability: OutOfStock

SKU:LIN-26ae5a

Enhance linear potentiometer systems with precision. 45mm OD, 18in Stroke, 4-20mA Output Sensor with CE Approval.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your linear potentiometer systems with the 45mm OD, 18in Stroke, 4-20mA Output Sensor. Crafted with a stainless steel body, this sensor boasts precision with <0.25% linearity. Featuring European Conformity (CE) approval, it ensures reliability in temperature extremes of -40 to 105ºC. Increase accuracy and performance with this Alliance Sensors Group replacement sensor.

Product Specifications

Technical Specs Brands

Alliance Sensors Group

Technical Specs Connector Type

Radial M12

Technical Specs European Conformity Ce Approved

Yes

Technical Specs Linearity

<0.25 % of Full Scale

Technical Specs Material

Stainless Steel Body

Technical Specs Output Current

4 to 20 mA

Technical Specs Outside Diameter

45 mm

Technical Specs Range

18 in

Technical Specs Resolution

0.025 % of Full Scale

Technical Specs Stroke

18 in

Technical Specs Temperature Range

-40 to 105 ºC

Technical Specs Type

Rod Ends

Technical Specs Update Rate

300 Hz
