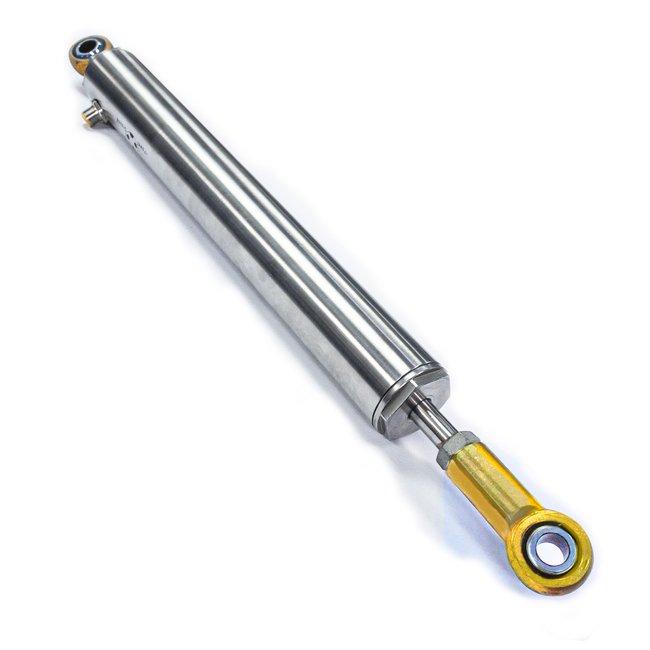

Linear Potentiometer Sensor, 45mm OD, 8in Stroke, 4-20mA Output
Linear Potentiometer Sensor, 45mm OD, 8in Stroke, 4-20mA Output
SKU:LIN-504841
Enhance your linear potentiometer system with precision. Alliance Sensors Group replacement sensor offers high accuracy and reliability for industrial applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Linear Potentiometer Sensor, 45mm OD, 8in Stroke, 4-20mA Output
$149.99
Quantity: 1
Claim Your Seller Account
Linear Potentiometer Sensor, 45mm OD, 8in Stroke, 4-20mA Output
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your linear potentiometer system with this high-performance replacement sensor by Alliance Sensors Group. With an outside diameter of 45mm and an 8-inch stroke, this sensor delivers precise measurements with <0.25% linearity and 0.025% resolution. Designed for reliability in extreme conditions, it features a stainless steel body and operates within a temperature range of -40 to 105°C. The CE-approved sensor ensures compliance and accuracy for your industrial needs.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Connector Type
Radial M12
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Current
4 to 20 mA
Technical Specs Outside Diameter
45 mm
Technical Specs Range
8 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
8 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
