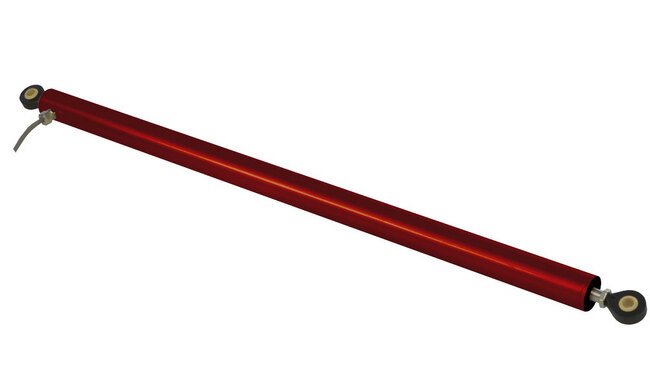

Linear Potentiometer Sensor Replacement - 27mm OD, 8" Stroke, 4-20mA Output

Name: Linear Potentiometer Sensor Replacement - 27mm OD, 8" Stroke, 4-20mA Output
Brand: Alliance Sensors Group
SKU: LIN-250b6d
Price: 79.99 USD
Availability: OutOfStock

SKU:LIN-250b6d

Upgrade linear potentiometers with precision! 27mm OD, 8" Stroke, 4-20mA Output, CE Approved.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your linear potentiometer with this replacement sensor from Alliance Sensors Group. Featuring an 8-inch stroke and an output current range of 4 to 20mA, this sensor offers reliable and precise measurements. With an aluminum body, radial cable termination, and European Conformity (CE) approval, this sensor ensures durability and compliance with industry standards. The <0.25% linearity and 0.025% resolution provide accurate readings, making it ideal for both consumer and institutional applications.

Product Specifications

Technical Specs Brands

Alliance Sensors Group

Technical Specs Cable Type

Radial

Technical Specs European Conformity Ce Approved

Yes

Technical Specs Linearity

<0.25 % of Full Scale

Technical Specs Material

Aluminum Body

Technical Specs Output Current

4 to 20 mA

Technical Specs Outside Diameter

27 mm

Technical Specs Range

8 in

Technical Specs Resolution

0.025 % of Full Scale

Technical Specs Stroke

8 in

Technical Specs Temperature Range

-20 to 85 ºC

Technical Specs Termination

1 m Cable

Technical Specs Type

Rod Ends

Technical Specs Update Rate

300 Hz
