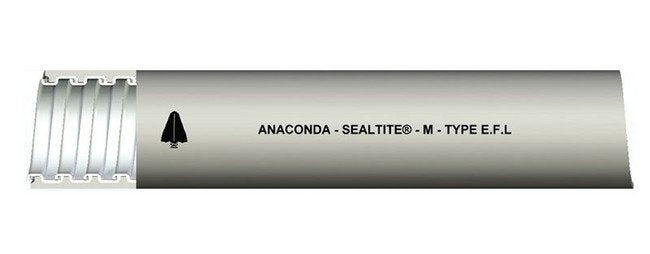

Liquid-Tight Flexible Metal Conduit - Aluminum Core EFL

Name: Liquid-Tight Flexible Metal Conduit - Aluminum Core EFL
Brand: Anamet Electrical, Inc.
SKU: LIQ-50b8ba
Price: 149.99 USD
Availability: OutOfStock

SKU:LIQ-50b8ba

Flexible, liquid-tight aluminum core conduit for superior wiring protection in various applications. Rated IP 67. Temperature range: -4°F to +176°F.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

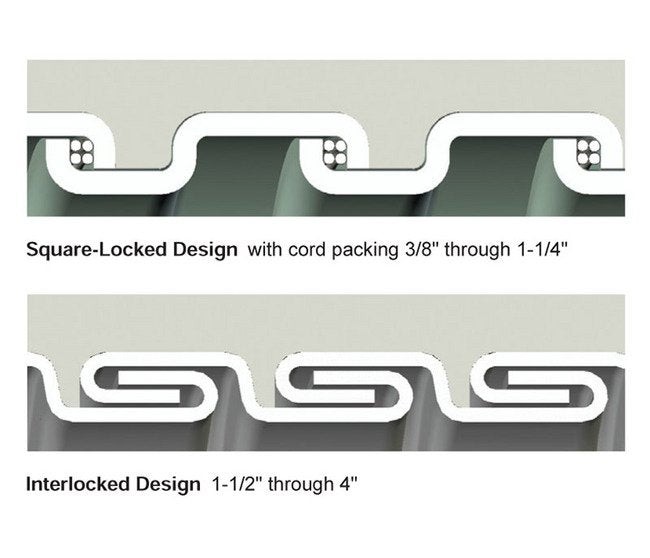

The Liquid-Tight Flexible Metal Conduit - Aluminum Core EFL is designed to offer a flexible, liquid-tight raceway for wiring applications. Featuring a continuously interlocked aluminum core and a sunlight resistant PVC outer jacket, this conduit ensures superior wiring protection. It is rated IP 67 when installed with approved end connectors. With a temperature range of -4°F to +176°F (-20°C to +80°C) and a smooth gray appearance, it is ideal for exposed applications where agency approvals are not mandatory. Available in a variety of trade sizes, this conduit provides added flexibility and crush strength where corrosive atmospheres are present.

Product Specifications

Application 0

Where the Atmosphere is Corrosive and added Flexibility and Crush Strength is ImportantTemperature Range: -4°F to +140°F (-20°C to +60°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Delivers superior wiring protection where agency approvals are not required. Manufactured in a full range of trade sizes from 3/8" through 4". Smooth appearing jacket for exposed applications. Rated for temperature range of -4°F to +176°F (-20°C to +80°C) Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

3.0 in | 76.2 mm

Specifications Approx Weight Per 100 Ft

19 lbs | 8.62 kg

Specifications Color

GRAY

Specifications Core Material

Aluminum

Specifications Cross Reference

42102 | 42104 | 42110 | 55-28-58-03 | 55-28-58-05 | AEF | ALT-12

Specifications Electrical Trade Size

3/4 in | 21 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.815 to 0.835 in | 20.701 to 21.209 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

100 ft | 30.48 m

Specifications Note

Other colors available upon request.

Specifications Outside Diameter

1.030 to 1.050 in | 26.162 to 26.670 mm

Specifications Packaging

Standard Carton

Specifications Type

EFL

Liquid-Tight Flexible Metal Conduit - Aluminum Core EFL
