Liquid Tight Flexible Metal Conduit - Type EFST 1-inch

Name: Liquid Tight Flexible Metal Conduit - Type EFST 1-inch
Brand: Anamet Electrical, Inc.
SKU: LIQ-c2c8c7
Price: 179.99 USD
Availability: OutOfStock

SKU:LIQ-c2c8c7

Type EFST Liquid Tight Flexible Metal Conduit - Durable, Liquid-Tight Wiring Solution for Various Applications

$179.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

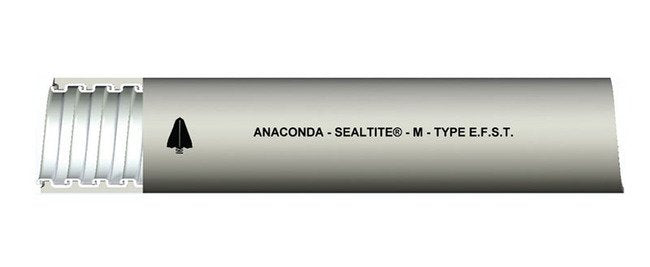

The Type EFST Liquid Tight Flexible Metal Conduit (LFMC) is a reliable solution offering a flexible and liquid-tight raceway for wiring. Constructed with a hot-dipped zinc galvanized steel core and a sunlight resistant PVC outer jacket, this conduit ensures durability and protection. With an IP 67 rating when paired with approved end connectors, it is ideal for various applications. The EFST conduit, with a 1-inch electrical trade size and 100 ft length, meets industry-standard RoHS WEEE certifications and provides a temperature range of -4ºF to +176ºF (-20ºC to +80ºC).

Product Specifications

Application 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Installation 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Specifications Approx Inside Bend Radius

4.0 in | 101.6 mm

Specifications Approx Weight Per 100 Ft

51 lbs | 23.13 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

13102 | 55-10-68-02 | 6104-30-00 | EF | JIC | JIC-1 | LT-13

Specifications Electrical Trade Size

1 in | 27 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.030 to 1.055 in | 26.162 to 26.797 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

100 ft | 30.48 m

Specifications Optional Colors

Black

Specifications Outside Diameter

1.290 to 1.315 in | 32.766 to 33.401 mm

Specifications Packaging

Standard Package

Specifications Type

EFST

Liquid Tight Flexible Metal Conduit - Type EFST 1-inch
