Liquid-Tight Flexible Metal Conduit - Type HC, 1 inch Electrical Trade Size

Name: Liquid-Tight Flexible Metal Conduit - Type HC, 1 inch Electrical Trade Size
Brand: Anamet Electrical, Inc.
SKU: LIQ-2c1d02
Price: 87.99 USD
Availability: OutOfStock

SKU:LIQ-2c1d02

Type HC Liquid-Tight Flexible Metal Conduit - Ideal for high and low-temperature environments, with IP 67 rating and RoHS WEEE certifications.

$87.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

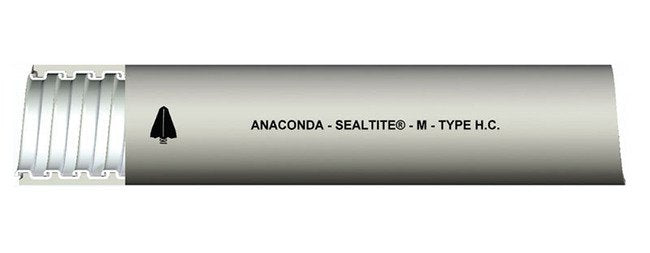

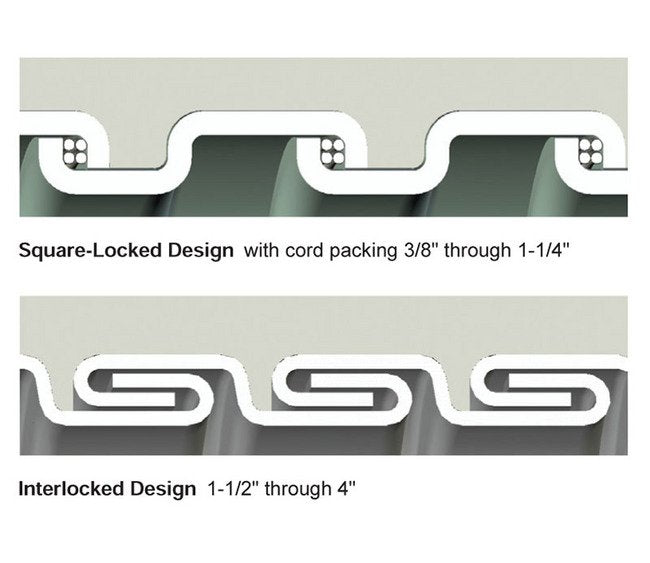

The Type HC Liquid-Tight Flexible Metal Conduit offers a resilient solution for wiring applications in high and low-temperature environments. Constructed with continuously interlocked hot-dipped zinc galvanized steel core and a PVC outer jacket, this conduit provides a flexible and liquid-tight raceway. With an IP 67 rating when used with approved connectors, it ensures superior wiring protection without the need for agency approvals. Suitable for temperatures ranging from -51ºF to +221ºF, this conduit is ideal for diverse industrial settings, providing a smooth jacket appearance for exposed applications and RoHS WEEE industry certifications.

Product Specifications

Application 0

High and Low Temperature EnvironmentsTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -51ºF to +221ºF (-46ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

4.0 in | 101.6 mm

Specifications Approx Weight Per 100 Ft

51 lbs | 23.13 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

33102 | AT-13 | HLT-1

Specifications Electrical Trade Size

1 in | 27 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.030 to 1.055 in | 26.162 to 26.797 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

100 ft | 30.48 m

Specifications Note

Sizes above 2" available on special order.Other colors available upon request.

Specifications Optional Colors

Black

Specifications Outside Diameter

1.290 to 1.315 in | 32.766 to 33.401 mm

Specifications Packaging

Small Cartons

Specifications Type

Liquid-Tight Flexible Metal Conduit - Type HC, 1 inch Electrical Trade Size
