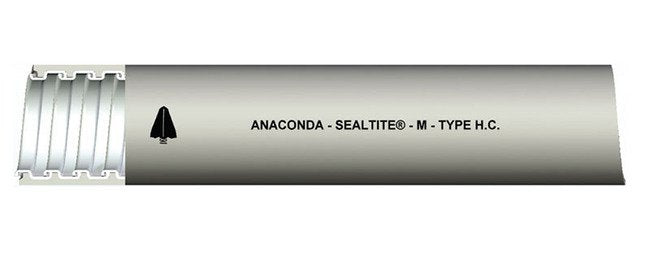

Liquid-Tight Flexible Metal Conduit - Type HC (2 in, 100 ft)

Name: Liquid-Tight Flexible Metal Conduit - Type HC (2 in, 100 ft)
Brand: Anamet Electrical, Inc.
SKU: LIQ-55d1cc
Price: 259.99 USD
Availability: OutOfStock

SKU:LIQ-55d1cc

Flexible, liquid-tight conduit for high and low-temperature environments - IP 67 rated, no agency approvals needed.

$259.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

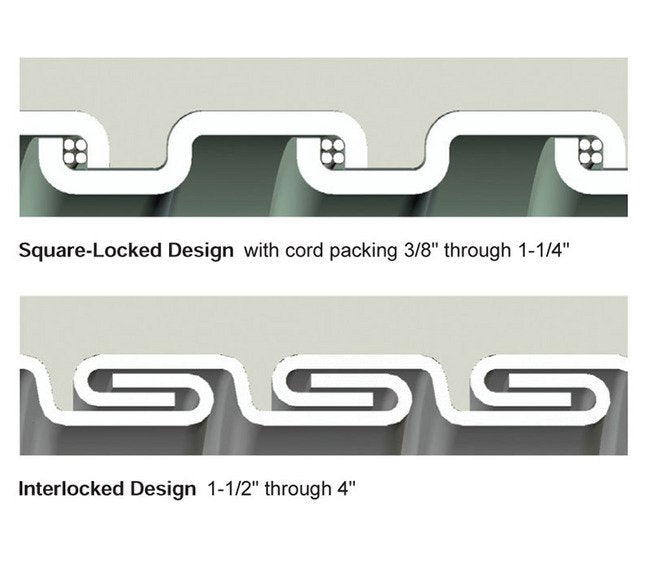

The Type HC Liquid-Tight Flexible Metal Conduit provides a superior solution for wiring applications in high and low-temperature environments. Constructed with continuously interlocked hot-dipped zinc galvanized steel core and a PVC outer jacket, this conduit offers flexibility and liquid-tight protection. With an IP 67 rating when used with approved connectors, it ensures reliable performance without the need for agency approvals. Suitable for a temperature range of -51ºF to +221ºF, this conduit is ideal for both hot and cold climates.

Product Specifications

Application 0

High and Low Temperature EnvironmentsTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -51ºF to +221ºF (-46ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

7.0 in | 177.8 mm

Specifications Approx Weight Per 100 Ft

136 lbs | 61.69 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

36104 | AT-16 | HLT-2

Specifications Electrical Trade Size

2 in | 53 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

2.020 to 2.045 in | 51.308 to 51.943 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

100 ft | 30.48 m

Specifications Note

Sizes above 2" available on special order.Other colors available upon request.

Specifications Optional Colors

Black

Specifications Outside Diameter

2.340 to 2.375 in | 59.436 to 60.325 mm

Specifications Packaging

Small Reels

Specifications Type

Liquid-Tight Flexible Metal Conduit - Type HC (2 in, 100 ft)
