Liquid-Tight Flexible Metal Conduit - Type HC (LFMC)

Name: Liquid-Tight Flexible Metal Conduit - Type HC (LFMC)
Brand: Anamet Electrical, Inc.
SKU: LIQ-0ef644
Price: 64.99 USD
Availability: OutOfStock

SKU:LIQ-0ef644

Type HC LFMC: Flexible, liquid-tight conduit for high/low temp environments. Ideal for wiring protection, IP 67 rated.

$64.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

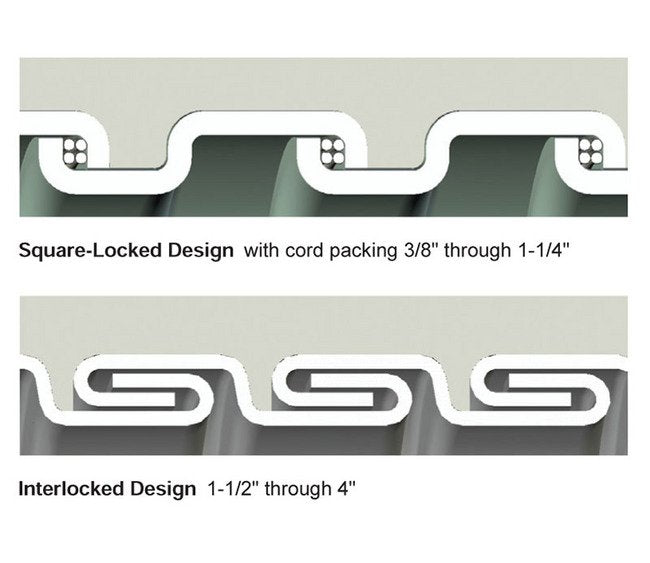

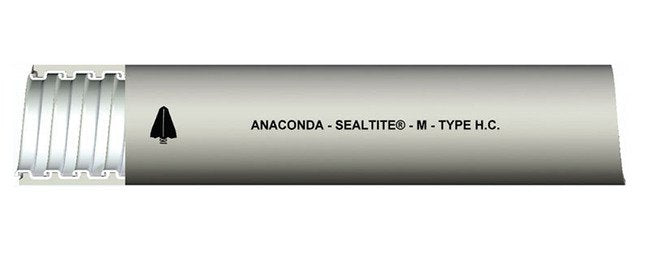

The Type HC Liquid-Tight Flexible Metal Conduit (LFMC) is engineered for high and low temperature environments, offering a flexible and liquid-tight raceway for wiring. Constructed with interlocked zinc galvanized steel core and a PVC outer jacket, this conduit provides superior wiring protection in a temperature range of -51ºF to +221ºF. With an IP 67 rating when used with approved connectors, it is ideal for applications where agency approvals are not required. Available in various trade sizes, this conduit is a reliable choice for both hot and cold resistant installations.

Product Specifications

Application 0

High and Low Temperature EnvironmentsTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -51ºF to +221ºF (-46ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

2.0 in | 50.8 mm

Specifications Approx Weight Per 100 Ft

21 lbs | 9.53 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

30101 | AT-10 | HLT-3/8

Specifications Electrical Trade Size

3/8 in | 12 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.485 to 0.505 in | 12.319 to 12.827 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

100 ft | 30.48 m

Specifications Note

Sizes above 2" available on special order.Other colors available upon request.

Specifications Optional Colors

Black

Specifications Outside Diameter

0.690 to 0.710 in | 17.526 to 18.034 mm

Specifications Packaging

Small Cartons

Specifications Type

Liquid-Tight Flexible Metal Conduit - Type HC (LFMC)
