Liquiflo M1 High Pressure Gear Pump 1 GPM 500 PSI
Liquiflo M1 High Pressure Gear Pump 1 GPM 500 PSI
SKU:PRO-bf2fb0
Enhance productivity with our Liquiflo M1 High Pressure Gear Pump: Max. Flow Rate 1 gpm, Discharge Pressure 500 psi. Reliable and durable solution for high-pressure applications.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Liquiflo M1 High Pressure Gear Pump 1 GPM 500 PSI
$1,299.99
Quantity: 1
Claim Your Seller Account
Liquiflo M1 High Pressure Gear Pump 1 GPM 500 PSI
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

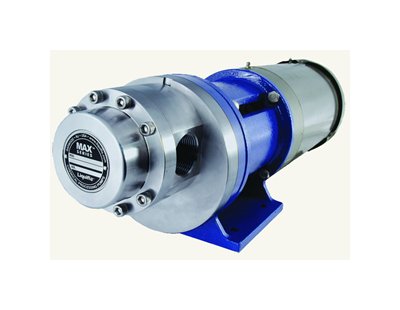

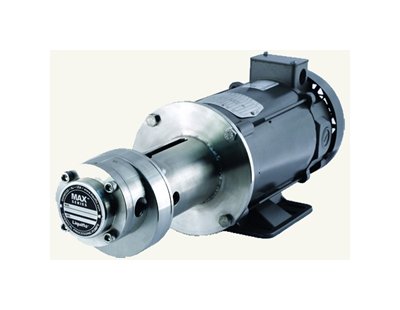

The Liquiflo M1 High Pressure Gear Pump from the Max-Series is meticulously crafted from 316 Stainless Steel or Titanium, ensuring exceptional durability in demanding industrial environments. Available in Sealed and Mag-drive variants, these pumps boast Helical gears and relieved wear plates for quiet, efficient operation. With a Max. Flow Rate of 1 gpm and Discharge Pressure of 500 psi, they excel in high-pressure pumping applications, offering reliability and extended service life.
Product Specifications
Specifications Discharge Pressure
34.5 bar | 500 psi
Specifications Max Flow Rate
1 gpm | 3.8 lpm
Specifications Max Fluid Temperature
500 ºF | 260 ºC
Specifications Max Speed
1800 rpm
Specifications Max Viscosity
100000 cps
Specifications Port Connections
0.5" 150# ANSI Flange | 0.5" BSPT | 0.5" NPT
Specifications Self Priming
1 ft
