Liquiflo M2 High Pressure Gear Pump - Stainless Steel/Titanium
Liquiflo M2 High Pressure Gear Pump - Stainless Steel/Titanium
SKU:PRO-905034
Powerful Liquiflo M2 High Pressure Gear Pump - Stainless Steel/Titanium for top reliability in demanding applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Liquiflo M2 High Pressure Gear Pump - Stainless Steel/Titanium
$1,899.99
Quantity: 1
Claim Your Seller Account
Liquiflo M2 High Pressure Gear Pump - Stainless Steel/Titanium
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

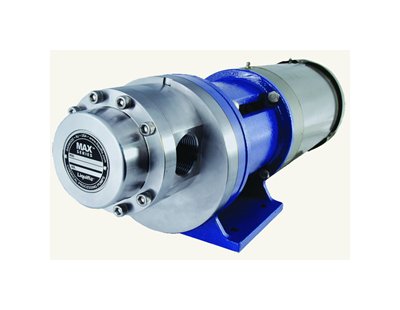

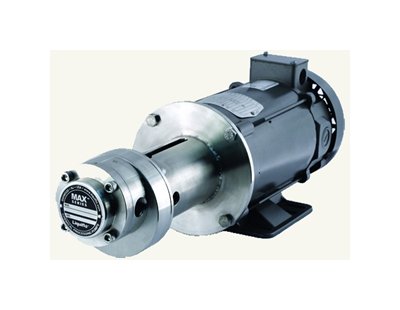

The Liquiflo M2 High Pressure Gear Pump, part of the Max-Series, is expertly crafted from 316 Stainless Steel or Titanium, ensuring exceptional durability for high-pressure pumping needs. Featuring helical gears and relieved wear plates, this pump operates smoothly, quietly, and minimizes gear separation forces. With a max flow rate of 2.5 gpm, discharge pressure up to 500 psi and a self-priming capability of 2ft, it excels in reliability and longevity for demanding industrial applications.
Product Specifications
Specifications Discharge Pressure
34.5 bar | 500 psi
Specifications Max Flow Rate
2.5 gpm | 9.5 lpm
Specifications Max Fluid Temperature
500 ºF | 260 ºC
Specifications Max Speed
1800 rpm
Specifications Max Viscosity
100000 cps
Specifications Port Connections
0.5" 150# ANSI Flange | 0.5" BSPT | 0.5" NPT
Specifications Self Priming
2 ft
