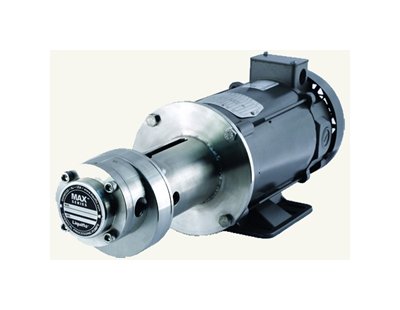

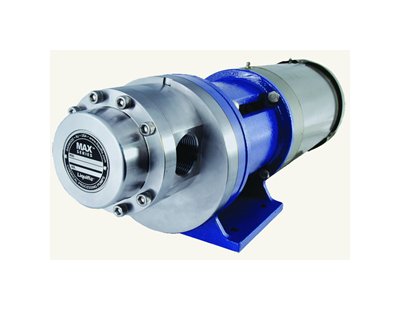

The Liquiflo M3 High Pressure Gear Pump from the Max-Series is expertly crafted from 316 Stainless Steel or Titanium, ensuring unmatched durability. Available in Sealed and Mag-drive options, these pumps boast Helical gears and relieved wear plates for smooth, quiet operation and reduced gear separation forces. With a maximum flow rate of 3.5 gpm and a discharge pressure of 500 psi, these pumps excel in high-pressure pumping applications, offering reliability and longevity.
Product Specifications
Specifications Discharge Pressure
34.5 bar | 500 psi
Specifications Max Flow Rate
3.5 gpm | 13.2 lpm
Specifications Max Fluid Temperature
500 ºF | 260 ºC
Specifications Max Speed
1800 rpm
Specifications Max Viscosity
100000 cps
Specifications Port Connections
0.5" 150# ANSI Flange | 0.5" BSPT | 0.5" NPT
Specifications Self Priming
4 ft
