Liquiflo M4 High Pressure Gear Pump - Max-Series
Liquiflo M4 High Pressure Gear Pump - Max-Series
SKU:PRO-245828
High-pressure gear pump designed for durability and efficiency in demanding pumping applications.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

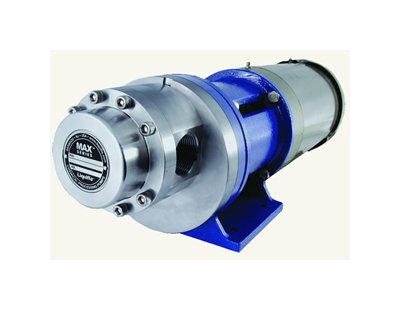

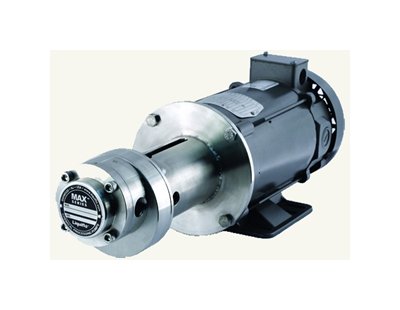

The Liquiflo M4 High Pressure Gear Pump from the Max-Series is expertly crafted from 316 Stainless Steel or Titanium, offering exceptional durability and reliability in both Sealed and Mag-Drive options. Featuring Helical gears and relieved wear plates, this pump ensures smooth and quiet operation while reducing gear separation forces. With a maximum flow rate of 5.2 gpm, discharge pressure up to 34.5 bar, and ability to handle viscosity up to 100,000 cps, this pump is ideal for high-pressure pumping applications. Trust in its unique and robust design for extended operational life.
Product Specifications
Specifications Discharge Pressure
34.5 bar | 500 psi
Specifications Max Flow Rate
5.2 gpm | 19.7 lpm
Specifications Max Fluid Temperature
500 ºF | 260 ºC
Specifications Max Speed
1800 rpm
Specifications Max Viscosity
100000 cps
Specifications Port Connections
0.75" 150# ANSI Flange | 0.75" BSPT | 0.75" NPT
Specifications Self Priming
6 ft
