Liquiflo M5 High Pressure Gear Pump - Max-Series

Liquiflo M5 High Pressure Gear Pump - Max-Series

SKU:PRO-6ae9a2

Premium Liquiflo M5 High Pressure Gear Pump for efficient high-pressure pumping, with Helical gears for smoother operation. Designed for institutional applications.

Regular price $1,499.99
Regular price Sale price $1,499.99
Sale

Initiate Order

Liquiflo M5 High Pressure Gear Pump - Max-Series

Liquiflo M5 High Pressure Gear Pump - Max-Series

$1,499.99

Quantity: 1

Claim Your Seller Account

Liquiflo M5 High Pressure Gear Pump - Max-Series

Liquiflo M5 High Pressure Gear Pump - Max-Series

$1,499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

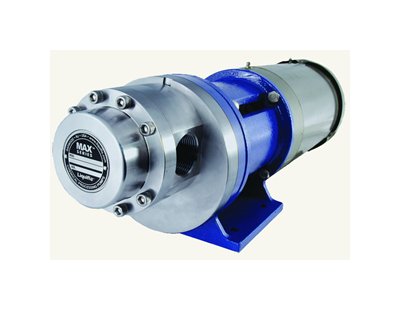

The Liquiflo M5 High Pressure Gear Pump from the Max-Series is expertly crafted from 316 Stainless Steel or Titanium, offering reliability and longevity in high-pressure pumping applications. With Helical gears, relieved wear plates, and reduced gear separation forces, this pump ensures smooth, quiet operation. It boasts a Max. Flow Rate of 8.8 gpm, Discharge Pressure of 34.5 bar, and a Max. Viscosity of 100000 cps. Ideal for institutional and government use.

Product Specifications

Specifications Discharge Pressure
34.5 bar | 500 psi
Specifications Max Flow Rate
8.8 gpm | 33.3 lpm
Specifications Max Fluid Temperature
500 ºF | 260 ºC
Specifications Max Speed
1800 rpm
Specifications Max Viscosity
100000 cps
Specifications Port Connections
0.75" 150# ANSI Flange | 0.75" BSPT | 0.75" NPT
Specifications Self Priming
6 ft
