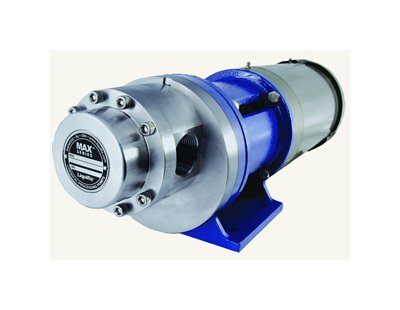

Liquiflo M6 High Pressure Gear Pump | Max-Series
Liquiflo M6 High Pressure Gear Pump | Max-Series
SKU:PRO-6580dd
Get reliable high-pressure pumping with the Liquiflo M6 Gear Pump. Durable stainless steel or titanium construction, quiet operation, and exceptional performance for demanding applications.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Liquiflo M6 High Pressure Gear Pump | Max-Series
$1,299.99
Quantity: 1
Claim Your Seller Account
Liquiflo M6 High Pressure Gear Pump | Max-Series
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Liquiflo M6 High Pressure Gear Pump from the Max-Series is expertly crafted from 316 Stainless Steel or Titanium, ensuring exceptional durability in high-pressure pumping tasks. Available in Sealed and Mag-drive configurations, these pumps boast Helical gears and relieved wear plates for smooth, quiet operation. With a maximum flow rate of 12.2 gpm, discharge pressure up to 34.5 bar, and exceptional self-priming capabilities, this pump is a reliable and efficient solution for demanding industrial applications.
Product Specifications
Specifications Discharge Pressure
34.5 bar | 500 psi
Specifications Max Flow Rate
12.2 gpm | 46.2 lpm
Specifications Max Fluid Temperature
500 ºF | 260 ºC
Specifications Max Speed
1800 rpm
Specifications Max Viscosity
100000 cps
Specifications Port Connections
1" 150# ANSI Flange | 1" BSPT | 1" NPT
Specifications Self Priming
7 ft
