Liquiflo M7 High Pressure Gear Pump - Max-Series

Liquiflo M7 High Pressure Gear Pump - Max-Series

SKU:PRO-e0f1b0

Reliable Liquiflo M7 High Pressure Gear Pump for high-pressure applications with durable design and exceptional performance.

Regular price $1,475.00
Regular price Sale price $1,475.00
Sale

Initiate Order

Liquiflo M7 High Pressure Gear Pump - Max-Series

Liquiflo M7 High Pressure Gear Pump - Max-Series

$1,475.00

Quantity: 1

Claim Your Seller Account

Liquiflo M7 High Pressure Gear Pump - Max-Series

Liquiflo M7 High Pressure Gear Pump - Max-Series

$1,475.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

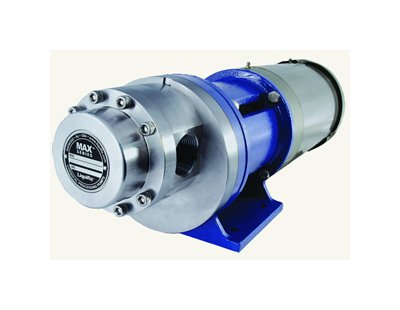

The Liquiflo M7 High Pressure Gear Pump from the Max-Series is meticulously crafted from 316 Stainless Steel or Titanium, ensuring unparalleled durability and reliability. Engineered in both Sealed and Mag-drive variants, these pumps feature Helical gears, relieved wear plates, and intrinsic gear separation force reduction for whisper-quiet operation. With a maximum flow rate of 15.5 gpm, discharge pressure reaching 34.5 bar, and the ability to handle viscosity up to 100000 cps, these pumps excel in high-pressure pumping applications, delivering peak performance with a maximum speed of 1800 rpm. Their self-priming capability up to 6 ft further enhances their operational efficiency.

Product Specifications

Specifications Discharge Pressure
34.5 bar | 500 psi
Specifications Max Flow Rate
15.5 gpm | 58.7 lpm
Specifications Max Fluid Temperature
500 ºF | 260 ºC
Specifications Max Speed
1800 rpm
Specifications Max Viscosity
100000 cps
Specifications Port Connections
1.25" 150# ANSI Flange | 1.25" BSPT | 1.25" NPT
Specifications Self Priming
6 ft
