Liquiflo M8 High Pressure Gear Pump - Titanium, High-Pressure Pumping
Liquiflo M8 High Pressure Gear Pump - Titanium, High-Pressure Pumping
SKU:PRO-7ef26b
Durable Liquiflo M8 Titanium High Pressure Gear Pump for industrial applications. Max flow rate 20 gpm, 500 psi, ideal for high-pressure needs.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Liquiflo M8 High Pressure Gear Pump - Titanium, High-Pressure Pumping
$1,899.99
Quantity: 1
Claim Your Seller Account
Liquiflo M8 High Pressure Gear Pump - Titanium, High-Pressure Pumping
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

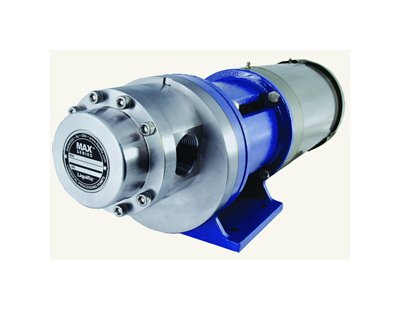

The Liquiflo M8 High Pressure Gear Pump, part of the Max-Series, is engineered for demanding industrial applications. Crafted from robust Titanium, this pump guarantees exceptional durability and performance under high pressure. With a maximum flow rate of 20 gpm and discharge pressure of 500 psi, it excels in handling viscous fluids up to 100,000 cps effortlessly. The helical gears and relieved wear plates ensure smooth, quiet operation, minimizing gear separation forces. Perfect for high-pressure pumping needs, the M8 pump offers reliability and longevity in challenging environments.
Product Specifications
Specifications Discharge Pressure
34.5 bar | 500 psi
Specifications Max Flow Rate
20 gpm | 75.7 lpm
Specifications Max Fluid Temperature
500 ºF | 260 ºC
Specifications Max Speed
1800 rpm
Specifications Max Viscosity
100000 cps
Specifications Port Connections
1.5" 150# ANSI Flange | 1.5" BSPT | 1.5" NPT
Specifications Self Priming
14 ft
