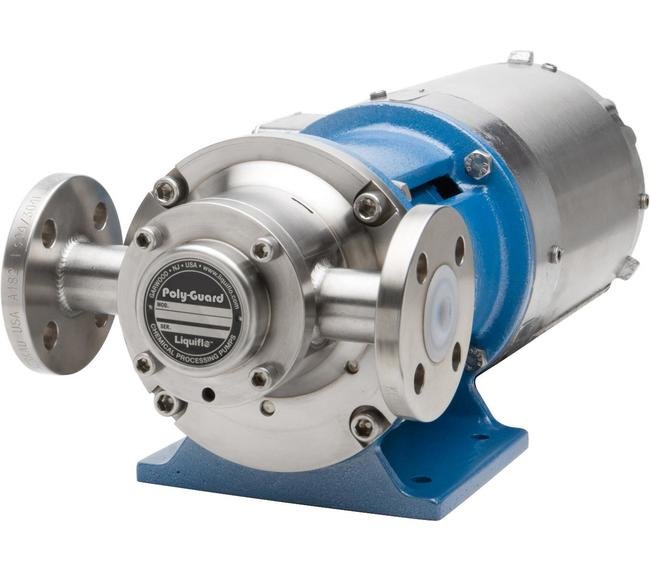

Liquiflo P5 Poly-Guard Gear Pump
Liquiflo P5 Poly-Guard Gear Pump
SKU:PRO-6bea2d
Highly durable Poly-Guard gear pump for corrosive fluids, ideal for high-purity services. Flow rates from 1.4 to 15 GPM.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Liquiflo P5 Poly-Guard Gear Pump
$1,899.99
Quantity: 1
Claim Your Seller Account
Liquiflo P5 Poly-Guard Gear Pump
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Liquiflo P5 Poly-Guard Pump is a versatile solution in the Poly-Guard P-Series, featuring a rugged Stainless Steel body lined with a chemically-resistant fluoropolymer. With non-metallic internal components, it excels in pumping highly corrosive inorganic acids, alkalis, and salts. Ideal for high-purity applications where contact with metallic parts must be avoided. Available in 7 sizes offering flow rates from 1.4 to 15 GPM, it ensures reliable performance in demanding environments.
Product Specifications
Specifications Discharge Pressure
19 bar | 275 psi
Specifications Max Flow Rate
8.6 gpm | 32.6 lpm
Specifications Max Fluid Temperature
200 ºF | 93 ºC
Specifications Max Speed
1750 rpm
Specifications Port Connections
1.5" 150# ANSI Flange | DIN 40 PN16 Flange
Specifications Self Priming
6 ft
