Liquiflo P6 Poly-Guard Gear Pump
Liquiflo P6 Poly-Guard Gear Pump
SKU:PRO-359e1a
Rugged fluoropolymer-lined gear pump for corrosive acids & high-purity services. 11.8 gpm Max. Flow Rate, self-priming. Ideal for inorganic acids, alkalis, salts.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Liquiflo P6 Poly-Guard Gear Pump
$1,899.99
Quantity: 1
Claim Your Seller Account
Liquiflo P6 Poly-Guard Gear Pump
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

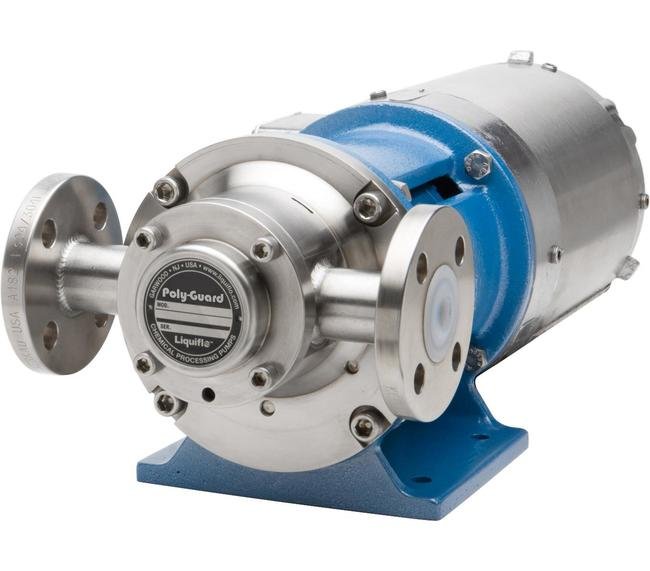

The Liquiflo P6 Poly-Guard Pump from the Poly-Guard P-Series features a rugged Stainless Steel body lined with a chemically-resistant fluoropolymer, making it ideal for handling highly corrosive substances like inorganic acids, alkalis, and salts. With all non-metallic internal components, this gear pump ensures high purity services without metallic contact. Available in 7 sizes with flow rates ranging from 1.4 to 15 GPM, it offers a Max. Flow Rate of 11.8 gpm, Discharge Pressure of 19 bar, and Max. Speed of 1750 rpm. Its self-priming capability of 7 ft and a Max. Fluid Temperature of 200 ºF make it a reliable choice for various applications.
Product Specifications
Specifications Discharge Pressure
19 bar | 275 psi
Specifications Max Flow Rate
11.8 gpm | 44.7 lpm
Specifications Max Fluid Temperature
200 ºF | 93 ºC
Specifications Max Speed
1750 rpm
Specifications Port Connections
1.5" 150# ANSI Flange | DIN 40 PN16 Flange
Specifications Self Priming
7 ft
