Liquiflo Poly-Guard P1 Fluoropolymer-Lined Pump
Liquiflo Poly-Guard P1 Fluoropolymer-Lined Pump
SKU:PRO-5b52b6
The Liquiflo Poly-Guard P1 Pump: Rugged, Chemically-Resistant, Ideal for Corrosive Acids & Alkalis
Regular price
$1,399.99
Regular price
Sale price
$1,399.99
Unit price
per
Initiate Order
Liquiflo Poly-Guard P1 Fluoropolymer-Lined Pump
$1,399.99
Quantity: 1
Claim Your Seller Account
Liquiflo Poly-Guard P1 Fluoropolymer-Lined Pump
$1,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

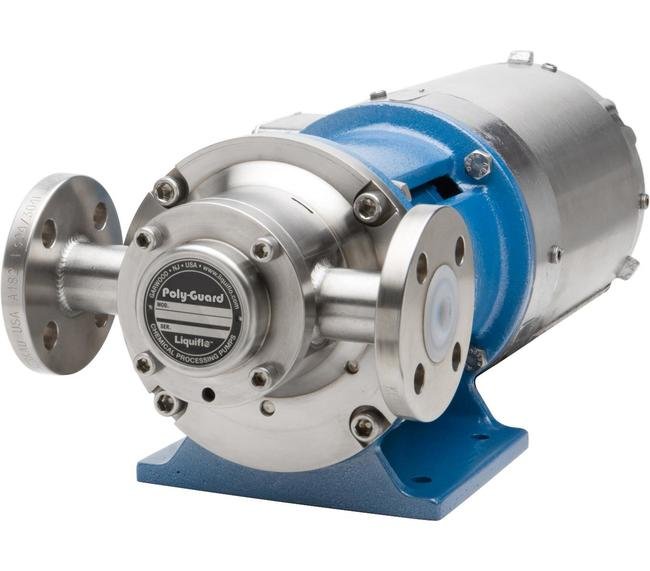

The Liquiflo Poly-Guard P1 Pump, from the Poly-Guard P-Series, features a rugged Stainless Steel body lined with a chemically-resistant fluoropolymer. With all non-metallic internal components, this pump is ideal for handling highly corrosive inorganic acids, alkalis, and salts. Designed for high-purity services that require avoiding contact with metallic components, the Poly-Guard P1 is available in 7 sizes offering flow rates from 1.4 to 15 GPM. It boasts a maximum flow rate of 1.4 gpm, discharge pressure of 19 bar, max speed of 1750 rpm, 0.75" 150# ANSI Flange port connections, and a max fluid temperature of 200°F.
Product Specifications
Specifications Discharge Pressure
19 bar | 275 psi
Specifications Max Flow Rate
1.4 gpm | 5.5 lpm
Specifications Max Fluid Temperature
200 ºF | 93 ºC
Specifications Max Speed
1750 rpm
Specifications Port Connections
0.75" 150# ANSI Flange | DIN 20 PN16 Flange
Specifications Self Priming
1.5 ft
