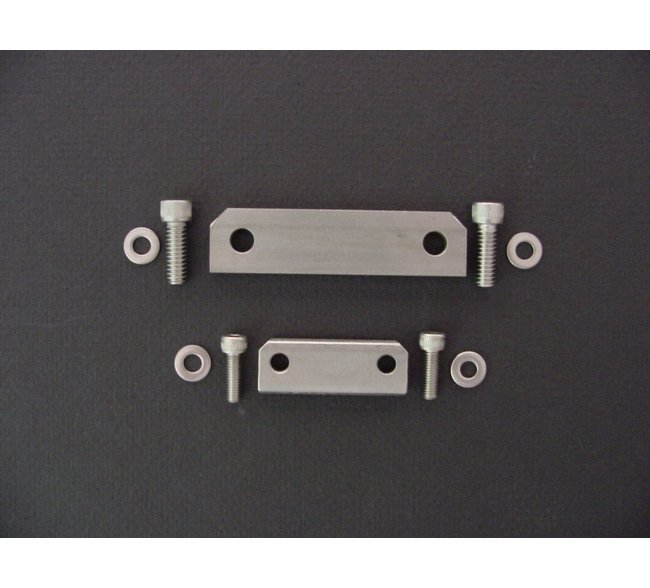

The Load Pin Keeper Plates are essential accessories designed to ensure secure installation and maintenance of load pins in various applications. With precise measurements including 7.000 in length, 2.250 in height, and 0.750 in thickness, these plates feature durable construction to withstand heavy loads. The keeper bolts and washers included meet industry standards for a reliable assembly process, making these plates a must-have for institutions and government buyers seeking dependable load pin support solutions.
Product Specifications
Dimensional Drawing Dimensional Drawing
Keeper Plate
Specifications Keeper Bolts
1/2"-13NC X 1-1/2"
Specifications M Length Of Keeper Plate
7.000 in
Specifications N Height Of Keeper Plate
2.250 in
Specifications O Distance From Base Of Keeper Plate To Hole Cent
1.125 in
Specifications Q Thickness Of Keeper Plate
0.750 in
Specifications R Distance Between Retaining Holes
5.438 in
Specifications S Retaining Hole Diameter
0.531 in
Specifications Washers
1/2"
Specifications Y Distance From Edge Of Keeper Plate To The Hole
0.780 in
