Load Pin Keeper Plates - Retention Solution for Precise Load Pin Installation

Name: Load Pin Keeper Plates - Retention Solution for Precise Load Pin Installation
Brand: Strainsert Co.
SKU: LOA-1dcbf0
Price: 29.99 USD
Availability: OutOfStock

SKU:LOA-1dcbf0

Ensure secure load pin installations with our Load Pin Keeper Plates. Compliant with government procurement standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

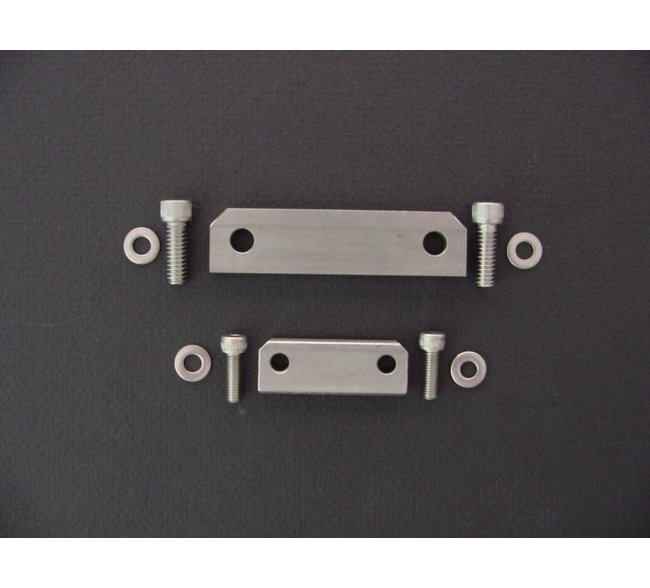

Enhance the security of your load pin installations with our Load Pin Keeper Plates. Crafted with precision, these plates feature a Length of 3.375 in, Height of 1.000 in, and a Thickness of 0.250 in. The Retaining Hole Diameter of 0.344 in ensures a snug fit, while the sturdy Keeper Bolts and Washers guarantee durability. Compliant with Federal/DoD procurement standards and FAR compliance factors, these plates provide a reliable solution for government and institutional procurement needs.

Product Specifications

Dimensional Drawing Dimensional Drawing

Keeper Plate

Specifications Keeper Bolts

5/16"-18NC X 3/4"

Specifications M Length Of Keeper Plate

3.375 in

Specifications N Height Of Keeper Plate

1.000 in

Specifications O Distance From Base Of Keeper Plate To Hole Cent

0.500 in

Specifications Q Thickness Of Keeper Plate

0.250 in

Specifications R Distance Between Retaining Holes

2.625 in

Specifications S Retaining Hole Diameter

0.344 in

Specifications Washers

5/16"

Specifications Y Distance From Edge Of Keeper Plate To The Hole

0.380 in
