Load Rated Marine Toggle Jaw

Name: Load Rated Marine Toggle Jaw
Brand: Lexco Cable Manufacturing
SKU: ARC-a37517
Price: 25.99 USD
Availability: OutOfStock

SKU:ARC-a37517

High-quality Load Rated Marine Toggle Jaw for secure wire connections in marine rigging applications. Safe Working Load of 1000 lbs.

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

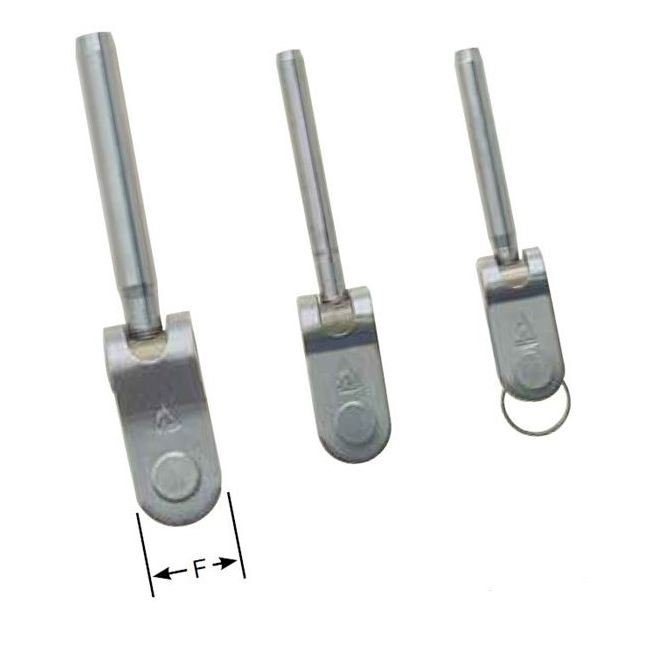

The Load Rated Marine Toggle Jaw is a high-quality fitting designed to prevent adverse bending of wire, ensuring optimal performance in marine rigging applications. This toggle jaw is specifically engineered for wire rope or aircraft cable crimping, providing secure connections and peace of mind. With a Safe Working Load of 1000 lbs, this toggle jaw meets rigorous industry standards for safety and durability. Always choose rigging fittings for high-load applications to ensure compliance with safety regulations.

Product Specifications

Note Note

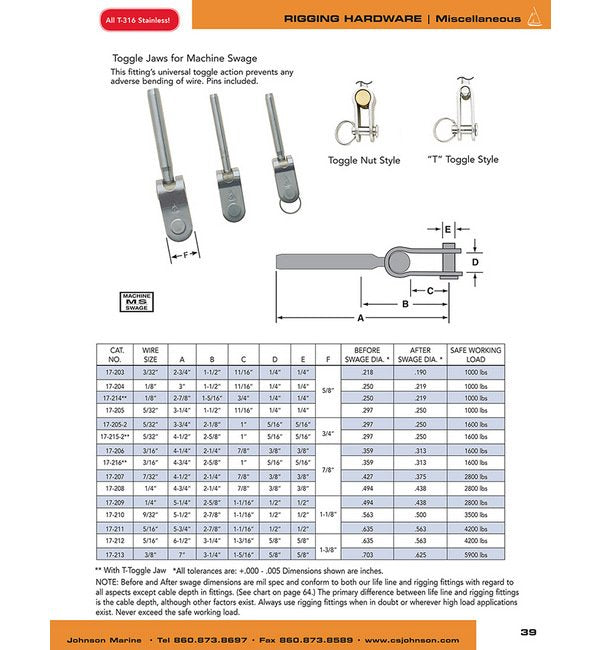

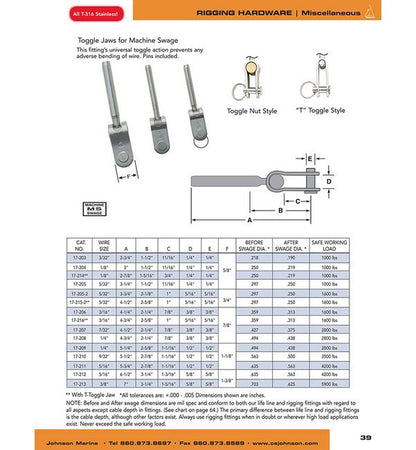

Before and After swage dimensions are mil spec and conform to both our life line and rigging fittings with regard to all aspects except cable depth in fittings. (See chart on page 64.) The primary difference between life line and rigging fittings is the cable depth, although other factors exist. Always use rigging fittings when in doubt or wherever high load applications exist. Never exceed the safe working load.

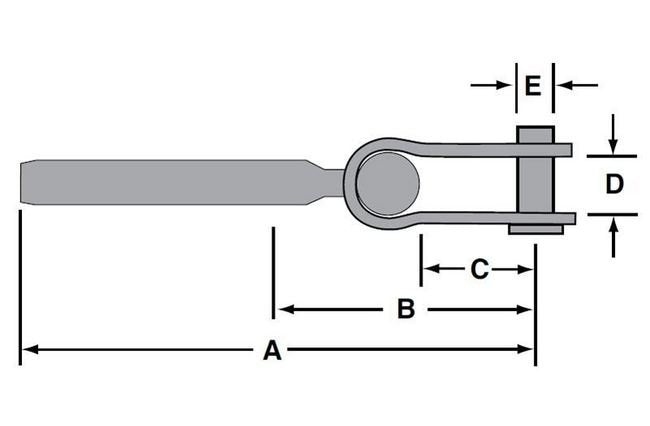

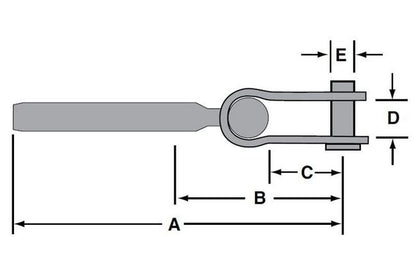

Specifications A

2-7/8 "

Specifications After Swage Dia

0.219 "

Specifications B

1-5/16 "

Specifications Before Swage Dia

0.250 "

Specifications C

3/4 "

Specifications D

1/4 "

Specifications E

1/4 "

Specifications F

5/8 "

Specifications Safe Working Load

1000 lbs

Specifications Wire Size

1/8 "

CAGE

0T9L4

NAICS

332510

PSC

4030
