Premium marine toggle jaw for architectural cable railings, ensures safety and durability with universal toggle action. Easy to install, meets high load application requirements.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

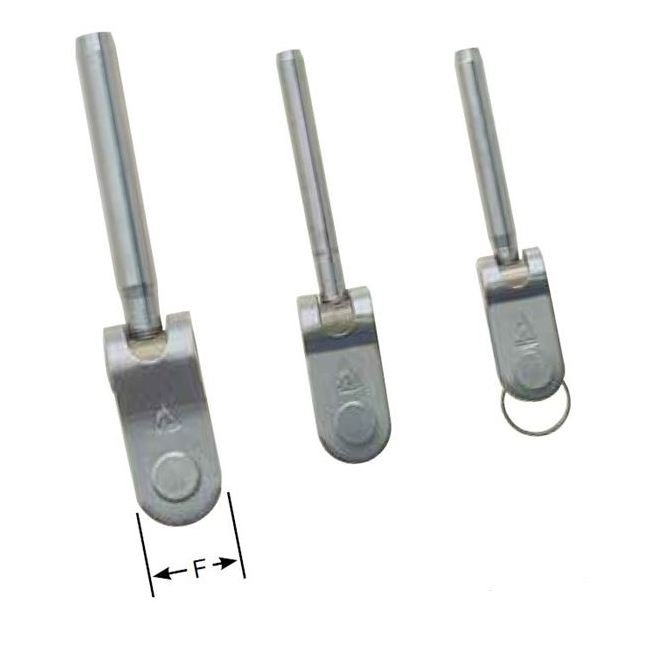

The Load Rated Marine Toggle Jaw is a premium solution for architectural cable railings, ensuring the highest standards of safety and durability. With a universal toggle action that prevents wire bending, this fitting comes with pins included for easy installation. Designed to be crimped onto wire rope or aircraft cable, it meets rigorous specifications including a Safe Working Load of 2800 lbs. Always choose rigging fittings for high load applications to guarantee compliance with safety regulations.

Product Specifications

Note Note

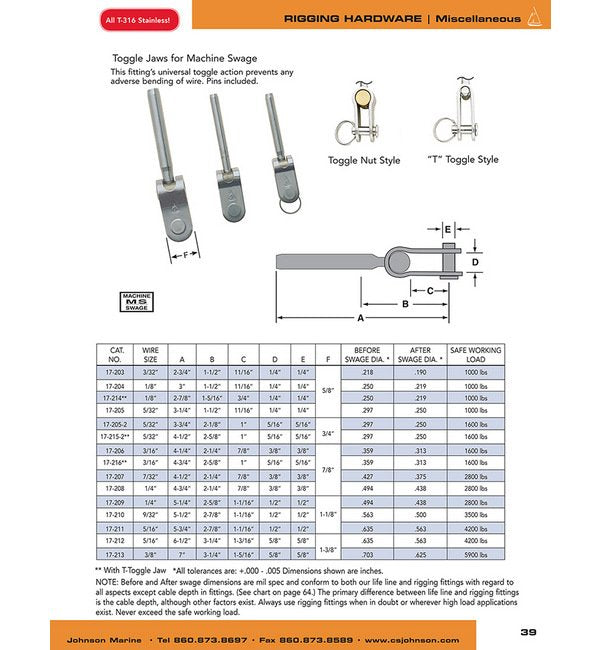

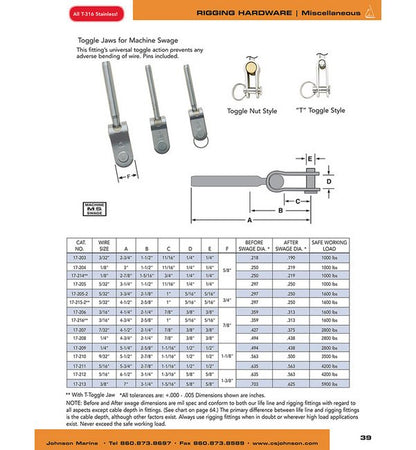

Before and After swage dimensions are mil spec and conform to both our life line and rigging fittings with regard to all aspects except cable depth in fittings. (See chart on page 64.) The primary difference between life line and rigging fittings is the cable depth, although other factors exist. Always use rigging fittings when in doubt or wherever high load applications exist. Never exceed the safe working load.

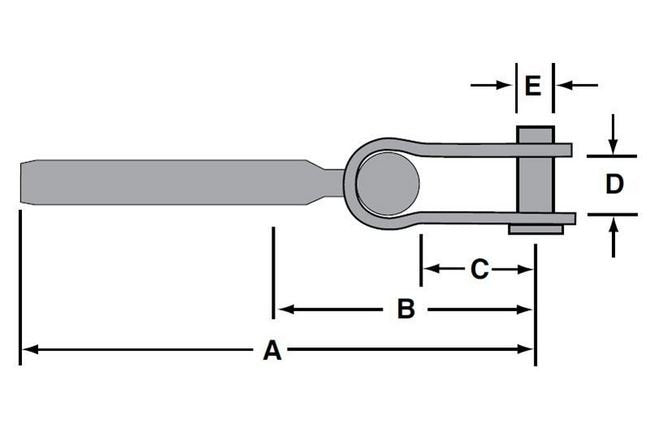

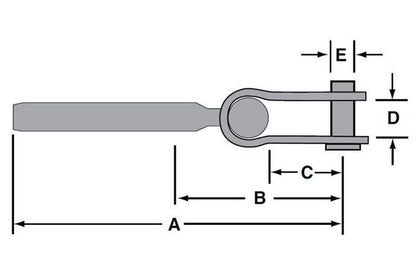

Specifications A

4-1/2 "

Specifications After Swage Dia

0.375 "

Specifications B

2.25 "

Specifications Before Swage Dia

0.427 "

Specifications C

7/8 "

Specifications D

3/8 "

Specifications E

3/8 "

Specifications F

7/8 "

Specifications Safe Working Load

2800 lbs

Specifications Wire Size

7/32 "

CAGE

0T9L4

NAICS

332510

PSC

4030
