Load Rated Marine Toggle Jaw for Cable Railing

Name: Load Rated Marine Toggle Jaw for Cable Railing
Brand: Lexco Cable Manufacturing
SKU: ARC-503d15
Price: 24.99 USD
Availability: OutOfStock

SKU:ARC-503d15

Premium Marine Toggle Jaw for Architectural Cable Railings. Prevents wire bending, Safe Working Load 4200 lbs, meets mil-spec standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

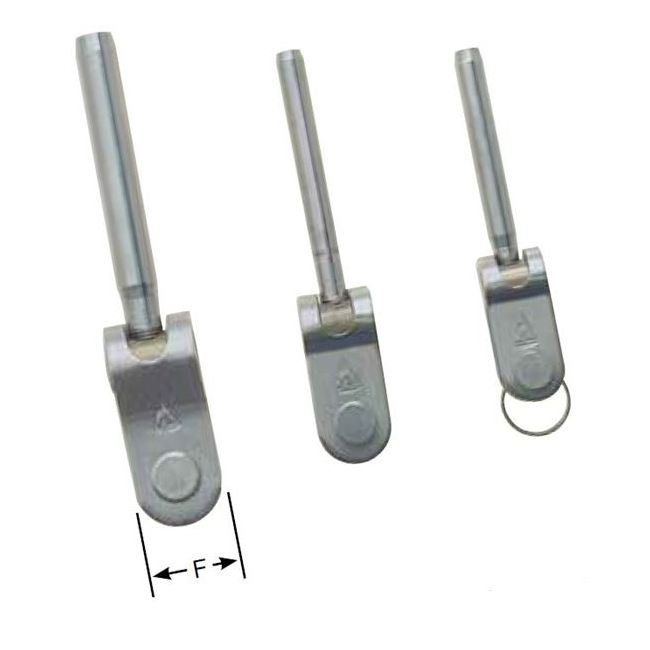

The Load Rated Marine Toggle Jaw is a premium fitting designed for architectural cable railings, offering a universal toggle action to prevent wire bending. With a Safe Working Load of 4200 lbs, this toggle jaw ensures secure connections when crimped onto wire ropes or aircraft cables. Compliance with mil-spec dimensions guarantees reliability for high load applications, meeting stringent industry standards.

Product Specifications

Note Note

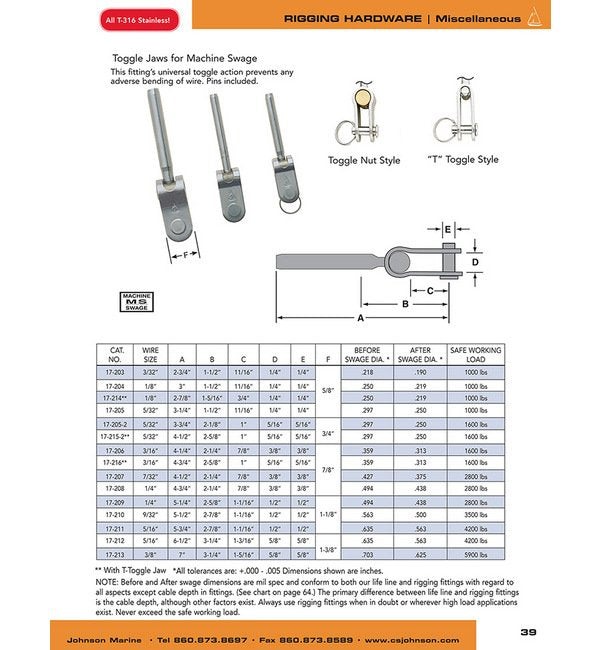

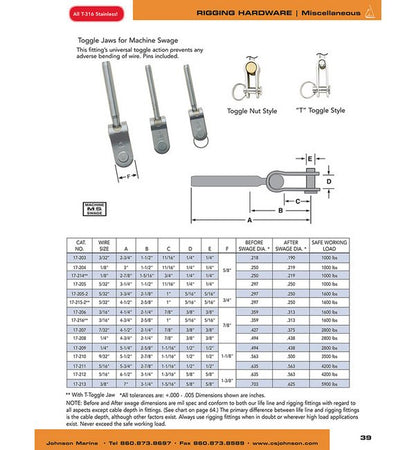

Before and After swage dimensions are mil spec and conform to both our life line and rigging fittings with regard to all aspects except cable depth in fittings. (See chart on page 64.) The primary difference between life line and rigging fittings is the cable depth, although other factors exist. Always use rigging fittings when in doubt or wherever high load applications exist. Never exceed the safe working load.

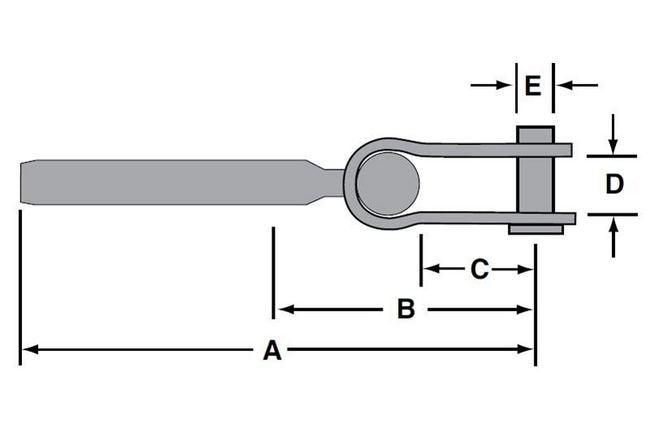

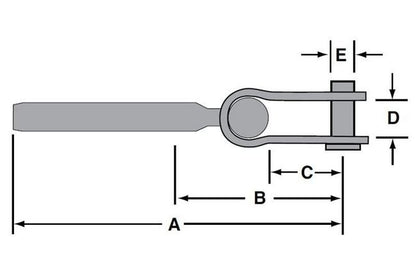

Specifications A

6-1/2 "

Specifications After Swage Dia

0.563 "

Specifications B

3-1/4 "

Specifications Before Swage Dia

0.635 "

Specifications C

1-3/16 "

Specifications D

5/8 "

Specifications E

5/8 "

Specifications F

1-3/8 "

Specifications Safe Working Load

4200 lbs

Specifications Wire Size

5/16 "

CAGE

0T9L4

NAICS

332510

PSC

4030
