Locking Board Support for .156 PCB and .250 Chassis Hole Sizes
Locking Board Support for .156 PCB and .250 Chassis Hole Sizes
SKU:01C-411455
Secure locking board support for .156 PCB and .250 Chassis hole sizes. RoHS compliant, durable Nylon 66 material.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Locking Board Support for .156 PCB and .250 Chassis Hole Sizes
$29.99
Quantity: 1
Claim Your Seller Account
Locking Board Support for .156 PCB and .250 Chassis Hole Sizes
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 41 Series Locking Board Support is designed for secure PCB mounting, suitable for .062 PCB thickness and .05 to .062 Chassis thickness. Featuring a .156 PCB Hole and .250 Chassis Hole, this support offers a reliable hold and durability. Made from Nylon 66 UL94V-2 material (UL94V-0 available), it meets RoHS compliance and ASTM D 4066 PA111 standards. With a temperature range of -40 to 185 F (-40 to 85 C), this support ensures stability in varied environments.

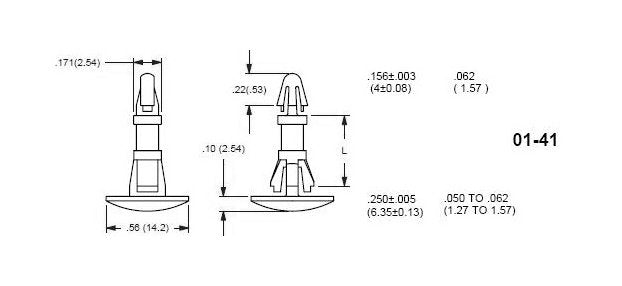

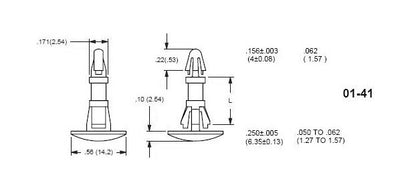

Product Specifications
Specifications L 015
1.04 (26.28) inches (mm)
