Locking Brake Lever Kit - Side Mount

Locking Brake Lever Kit - Side Mount

SKU:PUS-c35f1d

Secure and versatile Locking Brake Lever Kit for cowl, instrument panel, and more. Compliant with Federal standards.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Locking Brake Lever Kit - Side Mount

Locking Brake Lever Kit - Side Mount

$49.99

Quantity: 1

Claim Your Seller Account

Locking Brake Lever Kit - Side Mount

Locking Brake Lever Kit - Side Mount

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

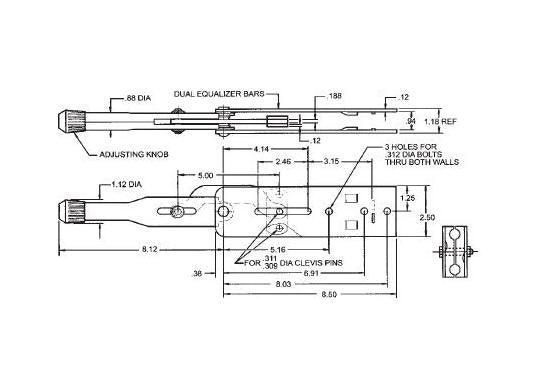

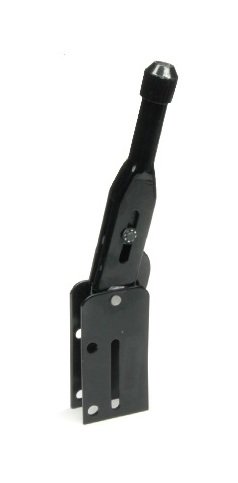

The Locking Brake Lever Kit - Side Mount is designed with 2.5-inch wide side plates and two cables for a versatile installation on cowl, instrument panel, seat riser, or frame. This kit, including clevis pins, cotter pins, washers, mounting spacers, and cable clamps, ensures secure and reliable operation. With Innermember and Conduit fittings rated up to 3000 lb, this kit offers exceptional load-bearing capacity. Compliant with Federal/DoD procurement standards and FAR compliance factors, this kit meets the stringent requirements of institutional buyers.

Product Specifications

Specifications Conduit Fitting 1500 Lb
062
Specifications Conduit Fitting 3000 Lb
072 | 073
Specifications Dimension Bmax
4.51 " | 4.69 "
Specifications Dimension Bmin
2.91 " | 3.04 "
Specifications Dim A
2.27 " | 2.40 "
Specifications Innermember Fitting 1500 Lb
157-047-000
Specifications Innermember Fitting 3000 Lb
157-047-002
CAGE
0T9L4
NAICS
326199
PSC
5975
