Locking Clevis Turnbuckle Clip - MS21252C, Military Spec

Name: Locking Clevis Turnbuckle Clip - MS21252C, Military Spec
Brand: Lexco Cable Manufacturing
SKU: MIL-046a2f
Price: 39.99 USD
Availability: OutOfStock

SKU:MIL-046a2f

Get reliable fastening with the Locking Clevis Turnbuckle Clip - MS21252C. Military-grade durability for demanding applications.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

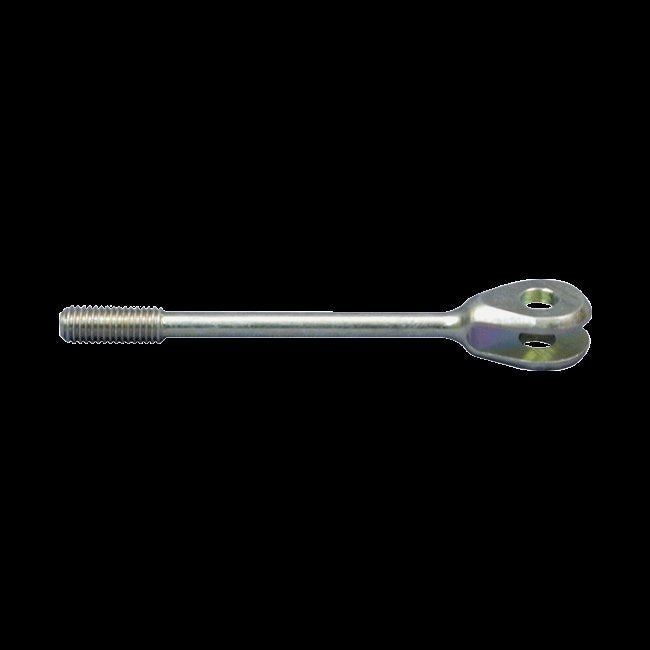

The Locking Clevis Turnbuckle Clip MS21252C is a versatile and durable solution for fastening applications in military settings. Built to precise specifications, it ensures reliability with a Wire Rope Dia. Ref of 3/16, a Thread T UNF-3A of 5/16-24, and a robust MBS of 4,600 lbs. Designed to exceed the standards set by NAS 645 and replacing AN 161, this clip locking turnbuckle offers exceptional performance and longevity.

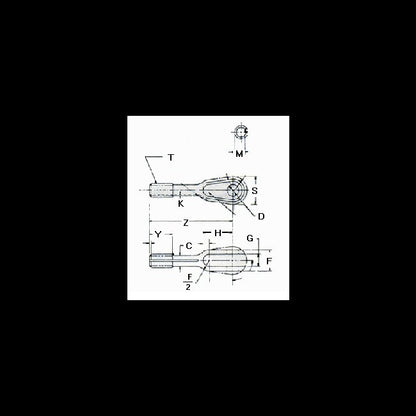

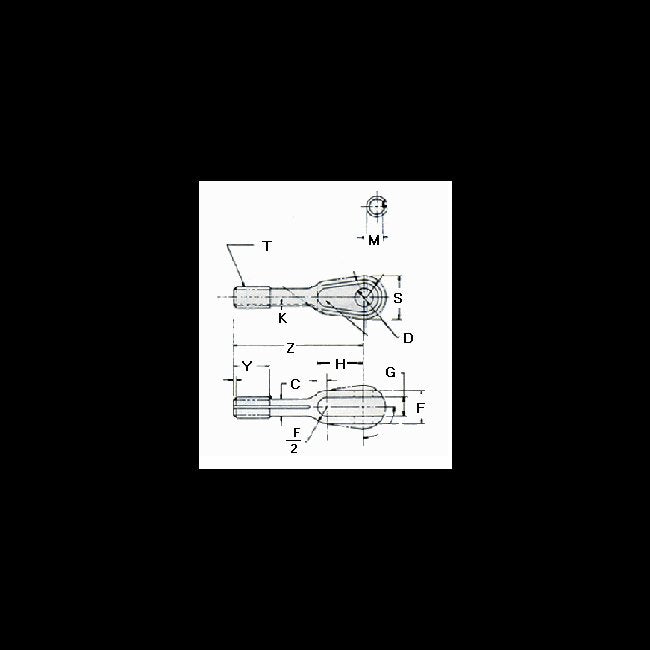

Product Specifications

Specifications C 006 000 Diain

.243

Specifications D 002 000 Diain

.313

Specifications F 010 005

.547

Specifications G 010 000

.250

Specifications H

.656

Specifications K Max

.0064

Specifications Mbs Lbs

4,600

Specifications M Max

.2830

Specifications M Min

.2754

Specifications Nsn

N/A

Specifications S Spher Dia

.734

Specifications Thread T Unf 3a

5/16-24

Specifications Wire Rope Dia Ref

3/16

Specifications Y 047

.750

Specifications Z 047

2.031

CAGE

0T9L4

NAICS

332999

PSC

5340

Locking Clevis Turnbuckle Clip - MS21252C, Military Spec
