Locking Dual Board Support Standoff - .156 Board Hole x .187 Chassis Hole
Locking Dual Board Support Standoff - .156 Board Hole x .187 Chassis Hole
SKU:01C-aaff88
Dual locking board support for circuit boards, Nylon 66 UL94V-2 material, easy to install and release for repairs, wide temperature range of -40 to 185F.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Locking Dual Board Support Standoff - .156 Board Hole x .187 Chassis Hole
$12.99
Quantity: 1
Claim Your Seller Account
Locking Dual Board Support Standoff - .156 Board Hole x .187 Chassis Hole
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Locking Dual Board Support Standoff from the 00 Series is a reliable solution designed for circuit board supports. Crafted from Nylon 66 UL94V-2 material, this dual board support offers dual-locking functionality for secure installations with easy manual handling. It allows for hassle-free releases during repairs, ensuring maintenance efficiency. With a temperature range of -40 to 185F (-40 to 85C), this board support is durable and versatile, suitable for a wide range of applications.

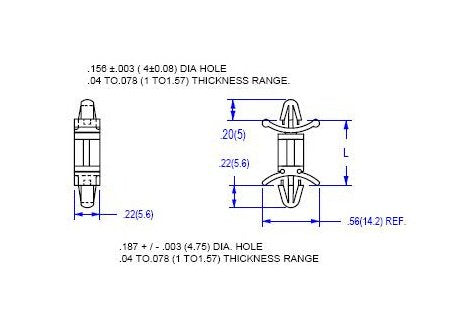

Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications Color
Natural
Specifications Dim L
.468 (11.9) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
