Locking Mini Circuit Board Support
Locking Mini Circuit Board Support
SKU:01C-21fc1d
Secure and releasable PCB support for .100 Chassis Holes, ASTM and RoHS compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Locking Mini Circuit Board Support
$29.99
Quantity: 1
Claim Your Seller Account
Locking Mini Circuit Board Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Locking Mini Circuit Board Support is designed for secure yet easily releasable installation in .100 Chassis Holes, with a teardrop style for added stability. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support ensures a safe and stable mounting solution for circuit boards. It meets ASTM D 4066, PA111, and RoHS compliance, offering a temperature range of -40 to 185F (-40 to 85C) for versatile applications.
Ready to Grow Without Cash Flow Constraints?

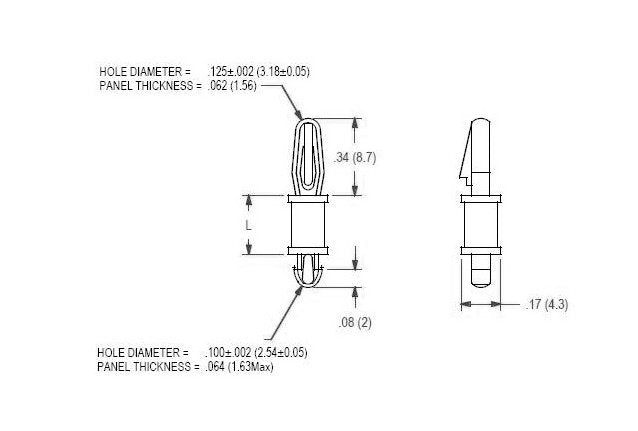

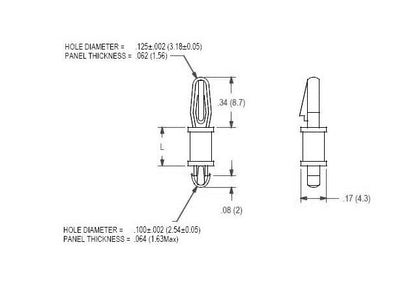

Product Specifications
Specifications Board Hole Diameter
.125 (3.18) inches (mm)
Specifications Chassis Hole Diameter
.100 (2.54) inches (mm)
Specifications Dim L 015
.187 (4.8) inches (mm)
Specifications Panel Thickness
.062 (1.56) Both Ends inches (mm)
Specifications Remarks Panel Thickness
.064 Max Chassis
