Locking Mini Circuit Board Support .125 Board Hole x .100 Chassis Hole

Name: Locking Mini Circuit Board Support .125 Board Hole x .100 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-2ff9ac
Price: 19.99 USD
Availability: OutOfStock

SKU:01C-2ff9ac

Securely mount PCBs with this Locking Circuit Board Support for .100 Chassis Hole. Nylon 66 material, RoHS compliant, ASTM D 4066 standards.

$19.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance PCB mounting with this Locking Mini Circuit Board Support designed for .100 Chassis Hole. The Teardrop Style board end securely fits in the hole while allowing for easy release. Made of Nylon 66 UL94V-2 material, this support is resilient and RoHS compliant. With a temperature range of -40 to 185F, it provides reliable performance in various environments. Meets ASTM D 4066, PA111 standards for quality assurance.

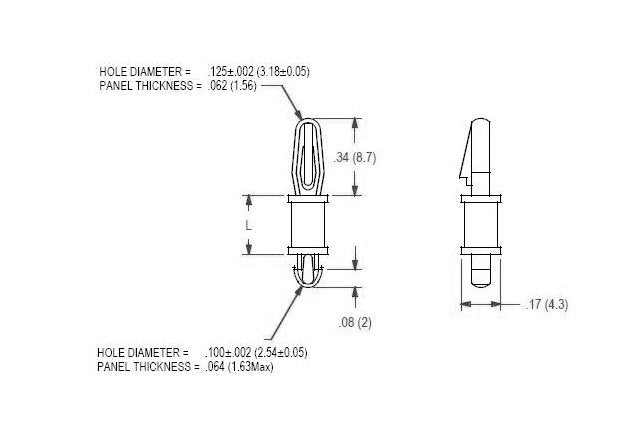

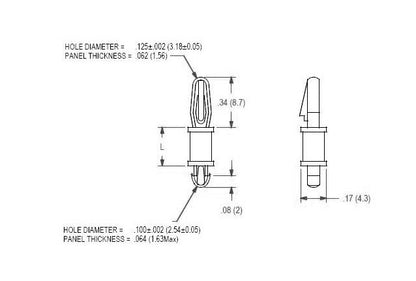

Product Specifications

Specifications Board Hole Diameter

.125 (3.18) inches (mm)

Specifications Chassis Hole Diameter

.100 (2.54) inches (mm)

Specifications Dim L 015

.562 (14.3) inches (mm)

Specifications Panel Thickness

.062 (1.56) Both Ends inches (mm)

Specifications Remarks Panel Thickness

.064 Max Chassis
