Locking Mini Circuit Board Support - .125 Board Hole x .100 Chassis Hole

Name: Locking Mini Circuit Board Support - .125 Board Hole x .100 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-618baa
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-618baa

Secure PCBs effortlessly with the Locking Mini Circuit Board Support perfect for .100 chassis holes. RoHS compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

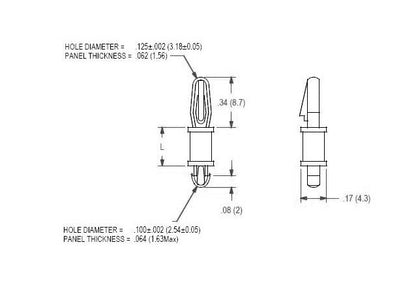

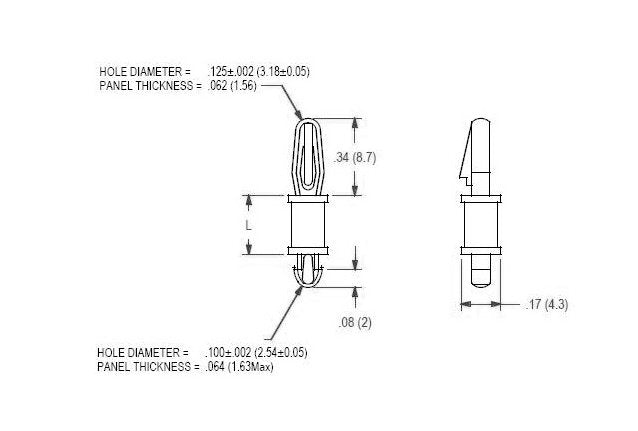

The Locking Mini Circuit Board Support is designed for securing PCBs in .100 chassis holes with a teardrop-style board end that provides a positive lock while remaining easily releasable. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support meets ASTM D 4066, PA111 standards and is RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), it ensures reliable performance in various environments.

Product Specifications

Specifications Board Hole Diameter

.125 (3.18) inches (mm)

Specifications Chassis Hole Diameter

.100 (2.54) inches (mm)

Specifications Dim L 015

.250 (6.4) inches (mm)

Specifications Panel Thickness

.062 (1.56) Both Ends inches (mm)

Specifications Remarks Panel Thickness

.064 Max Chassis

Locking Mini Circuit Board Support - .125 Board Hole x .100 Chassis Hole
